Cold rolled steel coils are a kind of metal products obtained by plastic deformation of hot rolled steel in cold rolling lines. As a result of this process the products have tighter dimensional tolerances, better surface quality and mechanical characteristics compared to hot rolled coils. Furthermore, by cold rolling it is possible to obtain thinner coils that are currently not available for hot rolling mills (less than 0.8-1.0mm).
EN 10130 DC03 High Drawing Cold Rolled Steel Coil Specification
Main Quality Standard | JIS3141, EN10130, DIN1623, ASTM A1008/1008M GB5213 |
Specification | 0.25mm upto 1.2mm ×900mm upto 1265mm |
Weight | max 10,000kg |
Yield Strength | 100 Mpa upto 280 Mpa |
Products inside Diameter | φ508mm or φ610mm |
Outer Diameter | max φ2,050mm |
Packing | export standard packaging; horizontal packaging |
Capacity | 300,000 tons/year |
The most frequently followed European standards for producing cold-rolled coils are EN 10130, EN 10268 and EN 10209.
EN 10130 is applied to cold-rolled coils made of the low-carbon DC01, DC03, DC04, DC05, DC06 and DC07 steel grades for cold forming without coating, with a minimum width of 600 mm and a minimum thickness of 0.35 mm.
EN 10130-DC03 Cold Rolled Coil
| C | P | S | Mn | Ti |
| ≤0.10 | ≤0.035 | ≤0.035 | ≤0.45 | - |
| Yield Strength Mpa | Tensile Strength Mpa | Elongation(Thickness) | ||
| 140-240 | 270-370 | ≥38 | ||
EN 10130 sets forth the requirements for surface quality (А, B) and finishing (gloss b, semi-gloss g, matte m, rough r) along with other parameters of cold-rolled coils. Acceptable size and shape tolerances should correspond to EN 10131.
Gnee Steel produces cold-rolled coils in a thickness range of 0.35-2.0 mm from carbon and low-alloy steel in accordance with the requirements of international standards. Cold-rolled coils are available as heat-treated and cold-hardened.

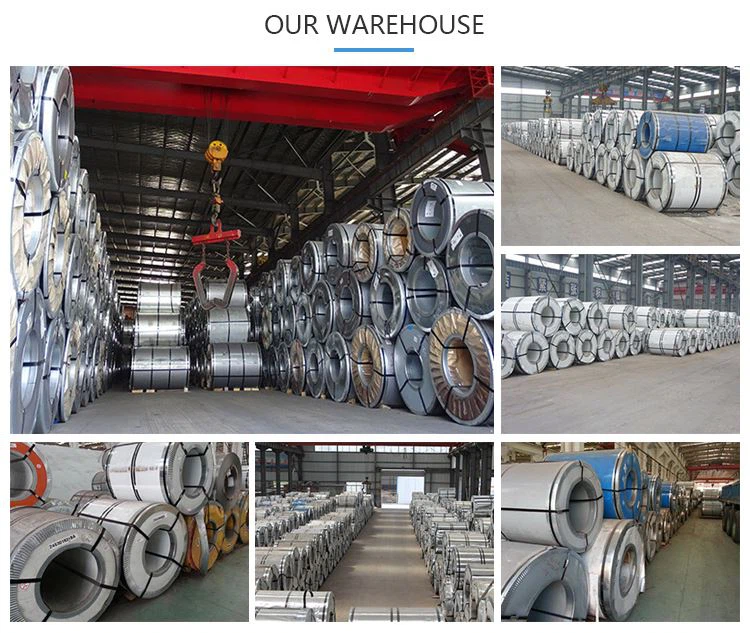

EN10130 DC03 Coils Packing each bundle with anti-rust paper and light oil then wrapped in plastic film with metallic pallet and put in 20ft container for standard sea worthy.
