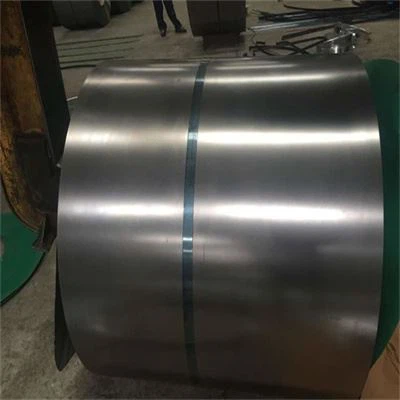

Grade DC03 cold coil exhibits excellent deep-drawing capability under all types of deformation. This grade is suitable for forming requirements such as deep drawing and difficult profiling.
Grade DC03 cold coil | 1.0347: Properties according to DIN EN 10 130
Steel type
| Short designation | VDA239-100 | Material number |
| DC03 | CR2 | 1.0347 |
DC03 | 1.0347: Mechanical properties (transverse)
| Yield strength1) Re MPa max. | Tensile strength Rm MPa | Elongation at fracture2) % min. A80 | Anisotropy r903)4) min. | Strain hardening exponent n903) min. |
| 240 | 270-370 | 34 | 1.3 | - |
DC03 | 1.0347: Chemical composition (heat analysis)
| Percentage by weight % max. | ||||
| C | P | S | Mn | Ti |
| 0.10 | 0.035 | 0.035 | 0.45 | - |
1) Where no yield strength is defined, the respective values shall apply to the 0.2 % proof stress (Rp0.2) or to the lower yield strength (ReL).
2) For thicknesses ≤ 0.7 mm but > 0.5 mm, the minimum elongation at fracture may be 2 units lower. For thicknesses ≤ 0.5 mm, the minimum elongation at fracture may be 4 units lower.
3) The r90 and n90 values apply to product thicknesses ≥ 0.5 mm only.
4) For thicknesses > 2 mm, the r90-value is reduced by 0.2.
