Compared with ordinary kiln-fired tiles, Corrugated Galvanized Steel Roofing Sheet have the advantages of stronger impermeability, strong bearing capacity, and low water absorption.
Precoated Corrugated Galvanized Steel Roofing Sheet Specification
Grade | DX51D, SGCC, SGCH, SGLCC, SGLCH,Q195 |
Thickness | 0.17- 0.6mm |
Length | 1- 5 meters or as client's request |
Coating thickness | Top side 15-25 micro; Back side 5-15 micro Normally, Top 17-25micro, Back 5-7 micro |
Surface | High Glossy |
Paints | Nippon, Akzo Nobel, Winter, Pingyuan depends on clients' request |
| Zinc coating | 20-275g/m2 |
| Base material | GI, Cold Roll, or ZINC steel |
| Paint | PE or PVDF |
| Protective film | Provided by customer's requirement |

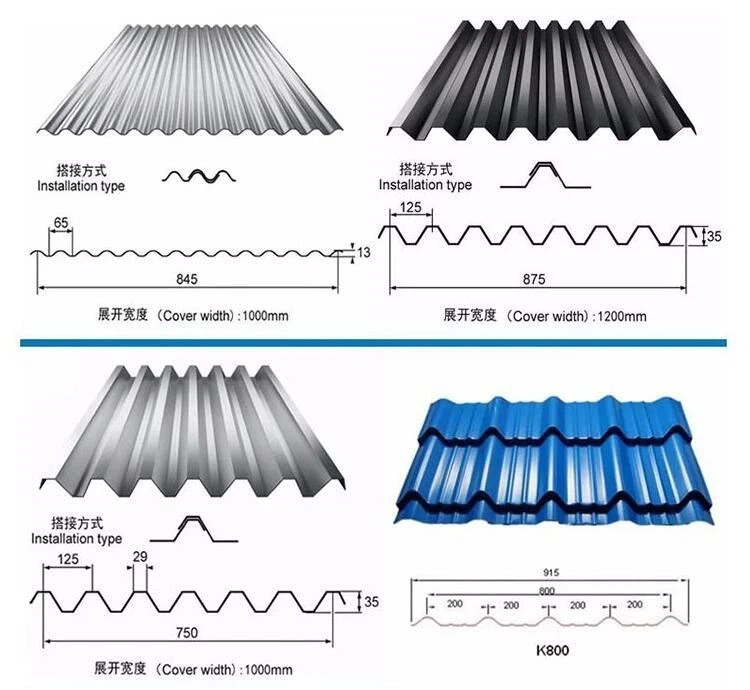

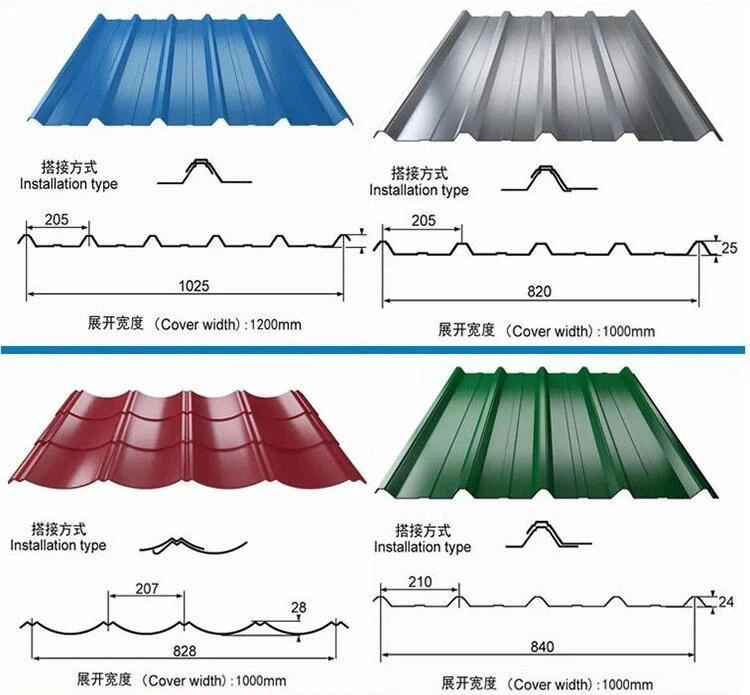

Corrugated Galvanized Steel Roofing Sheet
| 1:Application:Roof and wall panel |
| 2:Thickness :0.12-0.8mm tolerance:+/-0.01 |
| 3:Wave hight:16~18mm,wave pitch:76-78mm ,8-12 wave |
| 4:Wave :Raw material 762mm to 665mm(after corrugated) |
| 5:11 wave:Raw material 914mm to 800mm(after corrugated) 6:12 wave:Raw material 1000mm to 890mm or 900mm(after corrugated) |
FAQ about Corrugated Galvanized Steel Roofing Sheet
Q:What is the substrate for Galvanized Steel Roofing Sheet ?
A:hot dipped galvanized or gavalume, pre-painted galvanized
Q:What is the thickness
A:0.15-0.70mm, depends on customer
Q:What colors are available?
A:RAL Code,not only RAL, we can provide the color according to customer' s sample
Q:What is the normal color and most economical color?
A:Ocean blue and off white
