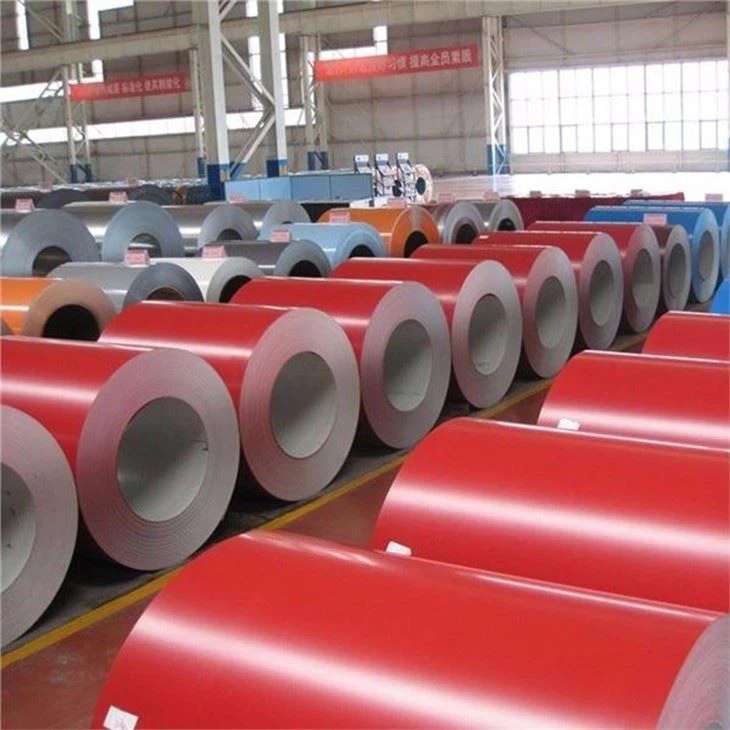

PREPAINTED GALVANIZED STEEL COIL(PPGI)

PPGI is pre-painted galvanized steel, also known as pre-coated steel, color coated steel etc.

Product Type:hot dipped galvanized, galvalume, zinc alloy, cold rolled steel, aluminum

Product Standard:S G3322 CGLCC ASTM A755 CS-B

Product Thickness:0.16-1.2mm

Sales:336 ton

PRODUCT INQUIRY

Custom PREPAINTED GALVANIZED STEEL COIL(PPGI) sizes available upon request.

We are a PPGI & PPGL manufacturer in Shandong, China. Our PPGI (Prepainted Galvanized Steel) & PPGL (Prepainted Galvalume Steel) are available in a variety of specifications.

Product Description Images & Video Applications Our Advantage

Standard	JIS G3322 CGLCC ASTM A755 CS-B	Surface coating color	RAL colors
Back side coatingcolor	Light grey ,white and so on	Package	export standard package or as request
Type of coating process	Front: double coated & double drying. Back: double coated&double drying, single-coated&double drying
Type of substrate	hot dipped galvanzied, galvalume, zinc alloy, cold rolled steel, aluminum
Thickness	0.16-1.2mm	Width	600-1250mm
Coil Weight	3-9Tons	Inside Diameter	508mm Or 610mm
Zinc Coating	Z50-Z275G	Painting	Top: 15 to 25 um (5 um + 12-20 um) back: 7 +/- 2 um
Coating introduction	Top paint: PVDF, HDP, SMP, PE, PU
	Prime paint: Polyurethane, Epoxy, PE
	Back paint: Epoxy, Modified polyester
Productivity	150,000Tons/year
Production core strengths
Resistance to acid rain:
Coating protection mechanism: It is very easy to form acid rain in the high level of industrial emissions or pollutants environment. Acidic penetration is formed in the surface of pre-painted steel, and accelerates the corrosion, forming blistering, peeling and so on.
Resistance ultraviolet rays:
Coating protecting Mechanism: pre-painted sheet in ultraviolet or strong sunlight conditions, the coating will exhibit chalking degeneration, manifested as discoloration and loss of gloss, lose paint quickly.
Resistance to humid heat:
Coating protecting mechanism: in hot and humid environments, high osmotic pressure of water vapor accelerates penetration, forming the degeneration of painting film, then the corrosion of the substrate, with the phenomenon of bubbles and peeling.
Resistance to low temperature:
Coating protecting mechanisms: most of the paint can keep stable processing performance above 0 degree, but at alpine region, the temperature will be below 20-40 degree, normal paint will become brittle，bend cracking, or even lose paint, thus protection function is lost totally.
