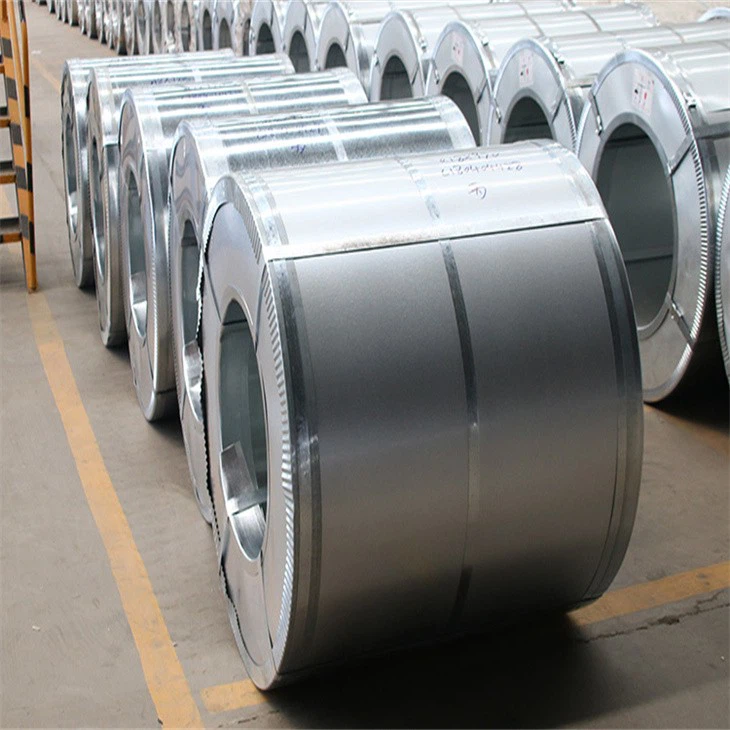

B50AH470 Non Grain Oriented Electrical steel
Silicon steel has a high resistivity, which means that it has a high electrical resistance. This property makes it useful in applications where high magnetic fields are required, such as in transformers and generators.GNEE provides you with the best quality B50AH470 silicon steel to strengthen our position as the innovation partner of choice.
B50AH470 Electrical steel Electromagnetic performance standard
| Grade | Thickness (mm) | Density (kg/dm3) | Maximum iron loss P15/50 (W/kg) | Minimum magnetic induction B50 (T) | Minimum lamination coefficient (%) |
| B50AH470 | 0.50 | 7.75 | 4.70 | 1.72 | 96.0 |
B50AH470 Non oriented electrical steel Typical electromagnetic performance
| Grade | Thickness (mm) | Density (kg/dm3) | Maximum iron loss P15/50 (W/kg) | Minimum magnetic induction B50 (T) | ||||||
| P10/50 | P15/50 | P10/60 | P15/60 | B10 | B25 | B50 | B100 | |||
| B50AH470 | 0.50 | 7.75 | 1.43 | 3.20 | 1.84 | 4.07 | 1.56 | 1.65 | 1.74 | 1.85 |
We constantly check the performance and quality of our products against the most stringent international test methods throughout the production process to provide our customers with the highest quality silicon steel. If you are looking for a supplier to work with, GNEE is your first choice.
Come in for a consultation and inspection!
