Dimensions Standard,weight chart and size schedules of 305 stainless steel Tube

SS 305 Tube Size（mm)	SS305 Tube Weight per Unit Area（kg/m）
6*1	0.125
6*1.5	0.168
8*1	0.174
8*1.5	0.243
10*1	0.224
10*1.5	0.318
12*1	0.274
12*1.5	0.392
12*2	0.498
14*1	0.324
14*2	0.598
14*3	0.822
16*2	0.697
16*3	0.971
17*3	1.046
18*1	0.423
18*1.5	0.617
18*2	0.797
18*3	1.121
20*1	0.473
20*2	0.897
20*3	1.27
21*3	1.345
22*2	0.996
22*2.5	1.214

Machinability

Grade 305 stainless steel can be machined through slow speeds and heavy feeds.

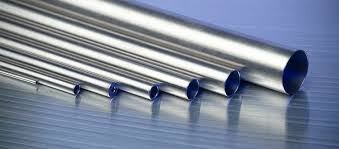

305 Stainless Steel Pipe d

Welding

Grade 305 stainless steel can be welded using most of the resistance and fusion methods. Oxyacetylene welding is not preferred for this steel.

The specifications for seamless or welded pipe is as per ASTM A312 aerospace specification. Also the pipe is available as finned pipe/ tube and have height of 0.375- 1.25’. Its thickness is about 20ga- 12ga. The square pipe is available in size ranging from 10mm x 10 mm- 250mm x250mm.

Some other type of stainless steel 305 seamless pipe is rectangular pipe, annealed pipe, mirror polished pipe, etc. all these pipes are available in different sizes, lengths, diameter.
