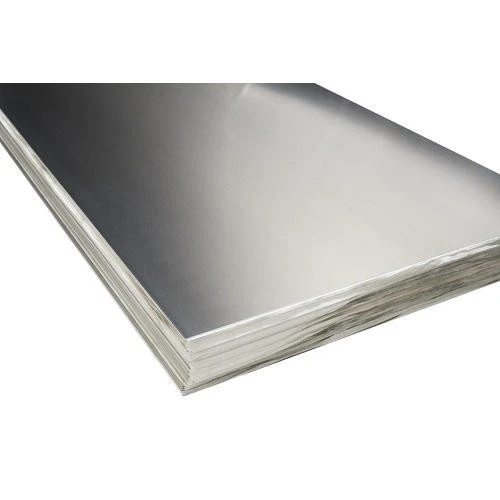

317LMN Stainless Steel Plate, AISI 317L Material Manufacturer

The difference between grade 317 and 317L is the percentage of carbon in their chemical composition. This difference in chemical composition is the deciding factor for a welded alloy grade. Since the content of carbon in 317L Stainless Steel Sheet is low, it is used for welding. The lower content of carbon promotes weldability, as the lack of carbon discourages the formation of chromium carbide precipitates. Thus using a low carbon version i.e. grade 317L Stainless Steel Plate for welding prevents intergranular corrosion. Another variation of grade 317 is the 317Lmn Stainless Steel Sheet, which contains a higher content of molybdenum and nitrogen in comparison to 317L.

UNS S31700 Coil Thickness, Stainless Steel 317 Plates / Foil and Circles, View properties of astm a240 317L Strip

The benefits of using this new alloy include its resistance to pitting corrosion as well as resistance to those environments that contain chlorine. Chlorine is acidic and often has a negative impact on conventional alloys such as grade 304. The combination of nitrogen and molybdenum in the ASTM A240 317L Shims also curbs the occurrence of crevice corrosion in marine environments. The most suitable use for this alloy is in the field of air pollution control. The corrosion resistance properties in combination with good mechanical strength are why many grade 317L Sheet Suppliers recommend using these sheets or plates to build flue gas desulfurization systems.

Specification List of 317L Stainless Steel Sheet

Specifications	ASTM A240 / ASME SA240
Thickness	4mm-100mm
Width	1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length	2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Surface	2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc
Finish	Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form	Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.

AISI 317L Material Sizes in MM

Size (in inches)	Size (in mm)
.125	3.18
.134	3.40
.156	3.96
.750	19.1
.875	22.2
1	25.4
1.125	28.6
1.250	31.8
2.500	63.5
3	76.2

Weight of UNS S31700 Coil

Thickness Chart in Inches	Plate Weight per Unit Area	Density
3/16	0.06000 lbs/in²42.184176 kg/m²	0.315 lbs/in³8.72 g/cm³
1/4	0.08 lbs/in²56.245568 kg/m²	0.315 lbs/in³8.72 g/cm³
3/8	0.121 lbs/in²85.0714216 kg/m²	0.315 lbs/in³8.72 g/cm³
1/2	0.161 lbs/in²113.1942056 kg/m²	0.315 lbs/in³8.72 g/cm³
1 3/4	0.549 lbs/in²385.9852104 kg/m²	0.315 lbs/in³8.72 g/cm³
2	0.627 lbs/in²440.8246392 kg/m²	0.315 lbs/in³8.72 g/cm³
2 1/4	0.705 lbs/in²495.664068 kg/m²	0.315 lbs/in³8.72 g/cm³
2 1/2	0.784 lbs/in²551.2065664 kg/m²	0.315 lbs/in³8.72 g/cm³

Check Global sales network For UNS S31703 Cold Rolled Plate, SS 317L Sheet Dimension, Type 317L Stainless Plate in Mumbai

Stainless Steel 317 Plates Dimension Table

Plate Surface finish	Thickness (mm)	Width (max mm)
2B – Cold rolled, heat treated, pickled, skin passed Sheet	0.25–8.0	2032
2D – Cold rolled, heat treated, pickled Sheet	0.4–6.35	1524
2H – Work hardened plate	0.4–6.35	1524
Polished, brushed plate	0.5–4.0	1524

A240 317Lmn Shims Imperial Dimensions

Plate Surface finish	Gauge (in)	Width (max in)
2B – Cold rolled, heat treated, pickled, skin passed Plate	10–24	72*
2D – Cold rolled, heat treated, pickled plate	12–24	60
Temper rolled Sheet Mexinox only	13–29	48
