Welded Steel Grating For Stair Treads Walk Way Platform And Various Floor

Steel grating, also known as bar grating or metal grating, is an open grid assembly of metal bars.It is widely used as floors, mezzanines, stair treads, fencing, trench covers etc.

Send Inquiry
  • Description

    Galvanized Steel Grating



    Welded steel grating is one of the most commonly used steel grating, also called metal open bar grating. Welded steel grating is made of carbon steel or stainless steel. Welded steel grating has anti-slip surface, corrosion resistance, good drainage function, high strength and load capacity. So it is widely used as walkway, stair, fence, shelf, ceiling and floor in many places.



    Galvanized Reinforced Serrated Plain Steel Welded Grating



    Specifications



    SP/S1 Sharp Serration.

    SP/S2 Interrupted Serration.

    SP/S3 Trapezoid Serration.



    Material: carbon steel and stainless steel.

    Surface treatment: galvanized, mill finished, painted, powder coated, etc.

    Surface type: standard plain surface, serrated surface.

    Bearing bar type: plain bearing bar and serrated bearing bar.

    Standard pitch of cross bar: 50 mm & 100 mm.

    Specifications of Welded Steel Grating
    Item Specifications of Bearing Bar
    (mm)
    Diameter of Cross Bar
    (mm)
    Pitch of Bearing Bar
    (mm)
    Pitch of Cross Bar
    (mm)
    SG-2036 20 × 3 6 30 100
    SG-2056 20 × 5 6 30 100
    SG-3036 30 × 3 6 30 100
    SG-3046 30 × 4 6 30 100
    SG-3056 30 × 5 6 30 100
    SG-3236 32 × 3 6 30 100
    SG-3256 32 × 5 6 40 100
    SG-3536 35 × 3 6 40 100
    SG-3556 35 × 5 6 40 100
    SG-4036 40 × 3 6 40 50
    SG-4046 40 × 4 6 40 50
    SG-4056 40 × 5 6 40 50
    SG-45510 45 × 5 10 60 50
    SG-50510 50 × 5 10 60 50
    SG-55510 55 × 5 10 60 50
    SG-60510 60 × 5 10 60 50
    SG-65510 65 × 5 10 60 50
    SG-70510 70 × 5 10 60 50

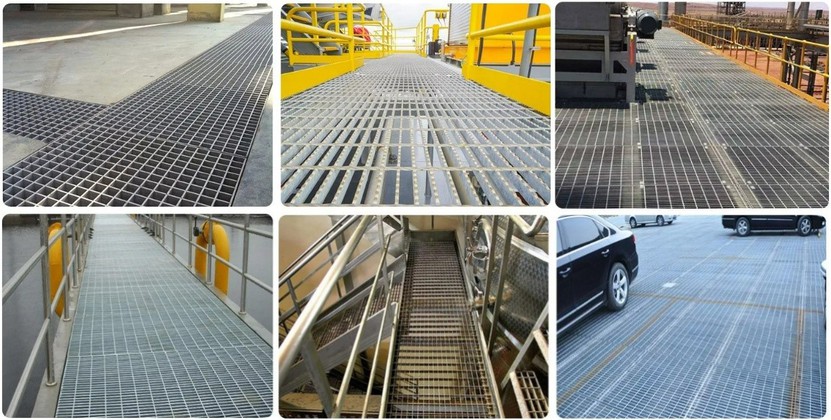

    Application scenarios



    Platform services in industrial and energy construction.

    Walkway of bridges and transitions.

    Shelf of factory and supermarket.

    Ceiling of factory, house and hall.

    Gully and well cover of street and huge yard.

    Fence of balcony, factory and playground.

    Floor of many places.



    Galvanized Reinforced Serrated Plain Steel Welded Grating



    Packing

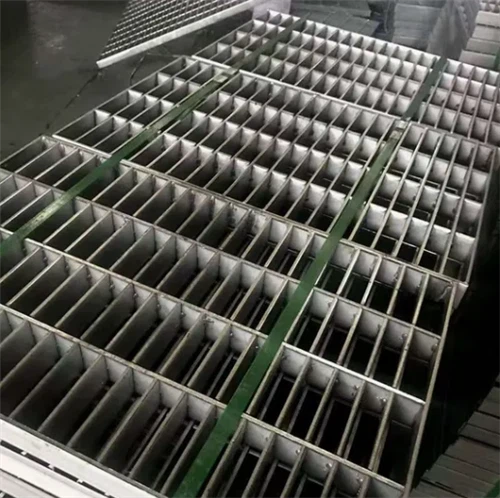

    • Strap packaging: generally used in neat steel grating.
    • Screw rod fixation: Using four screws through the steel grating aperture, locking screw packaging method.
    • Pallet packaging: generally for export packing.



    Galvanized Reinforced Serrated Plain Steel Welded Grating



    GNEE STEEL's qualifications



    Galvanized Reinforced Serrated Plain Steel Welded Grating



    GNEE STEEL participated in the exhibition



    Galvanized Reinforced Serrated Plain Steel Welded Grating
