DX54D+AZ Hot Dip Aluminium-Zinc Alloy Coating AZ Steel







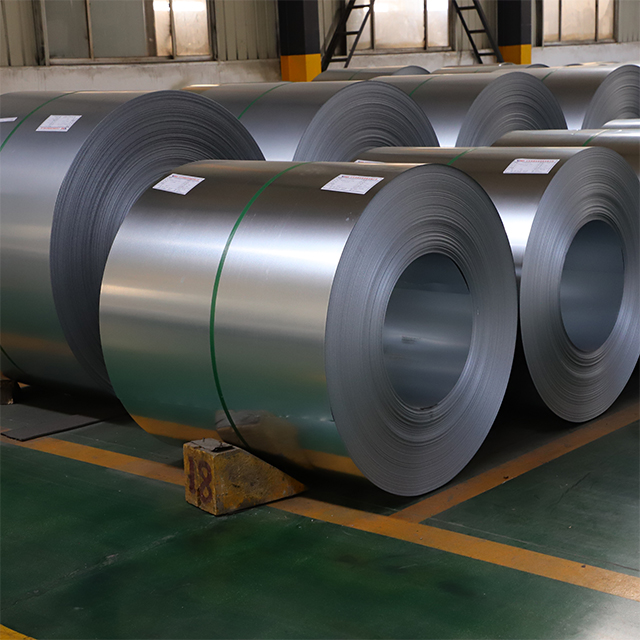

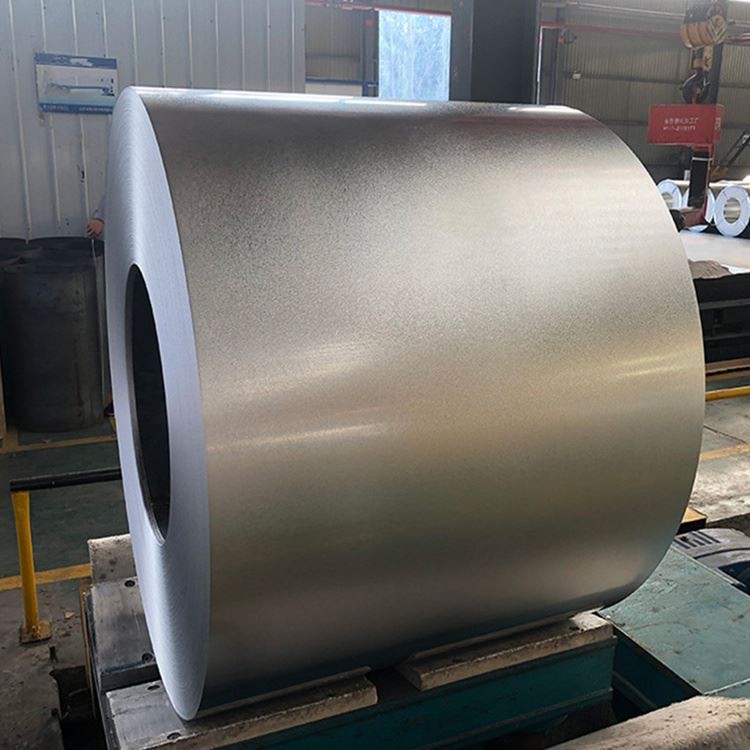

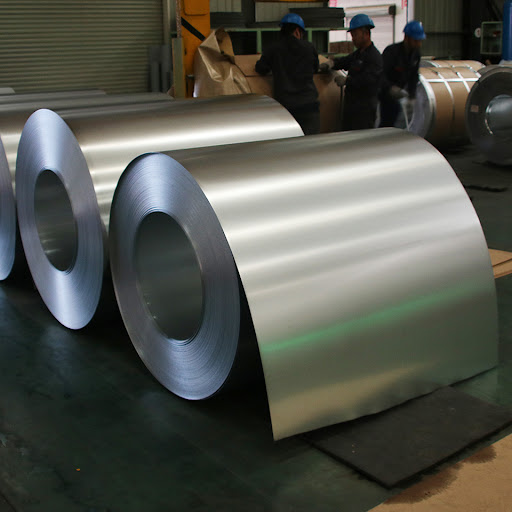

DX54D+AZ is an extra deep drawing grade Galvalume steel coil manufactured in accordance with EN 10346 standard.



• DX54D: Extra deep drawing low-carbon cold rolled steel substrate. Among DX51D / DX52D / DX53D series, it delivers the best formability, ultra-soft texture and the highest elongation. It perfectly fits ultra-complex deep drawing, ultra-thin sheet processing and multi-pass stamping with zero cracking and minimum springback.



• +AZ: Hot-dip aluminum-zinc alloy coating (Galvalume / Aluzinc) with a composition of 55% Al – 43.5% Zn – 1.5% Si. Its corrosion resistance is 3 to 6 times higher than ordinary hot-dip galvanized steel. It features high temperature resistance up to 315°C, high heat reflectivity and edge self-healing performance.


Automotive Industry: Door inner panels, hood inner parts, seat frames, fuel tanks and other complex stamping components requiring crack-free forming.

Home Appliances: Refrigerator shells, washing machine panels, air conditioner backplates, microwave shells and deep-drawn structural parts.

Construction Industry: Special-shaped roofing, curved wall panels, gutter and downspout with irregular structures.

General Industry: Electrical enclosures, metal furniture, ventilation ducts and chemical equipment housings.

Grade	Material No.	C	Si	Mn	P	S	Ti
DX54D+AZ	1.0306+AZ	0.12	0.50	0.60	0.10	0.045	0.30



Grade	Material No.	R90 min	N90 min	Yield Strength MPa	Tensile strength MPa	Elongation A80 min
DX54D+AZ	1.0306+AZ	1.4	0.18	120-220	260-350	36

Thickness of cold rolled steel plate	Thickness of galvanized steel sheet	Wearing plate+Corrosion resistance plate	Galvanized coil+Galvanized coil	Ction volume	Stainless steel plate	Thick plate
0.1mm	0.1mm	1.5mm	0.1mm	0.1mm	1.5mm	18mm
0.2mm	0.2mm	2.0mm	0.2mm	0.2mm	2.0mm	20mm
0.3mm	0.3mm	2.5mm	0.3mm	0.3mm	2.5mm	22mm
0.4mm	0.4mm	2.75mm	0.4mm	0.4mm	2.75mm	25mm
0.5mm	0.5mm	3.0mm	0.5mm	0.5mm	3.0mm	28mm
0.6mm	0.6mm	3.5mm	0.6mm	0.6mm	3.5mm	30mm
0.7mm	0.7mm	3.75mm	0.7mm	0.7mm	3.75mm	32mm
0.8mm	0.8mm	4.0mm	0.8mm	0.8mm	4.0mm	35mm
0.9mm	0.9mm	4.5mm	0.9mm	0.9mm	4.5mm	40mm
1.0mm	1.0mm	4.75mm	1.0mm	1.0mm	4.75mm	42mm
1.2mm	1.2mm	5.0mm	1.2mm	1.2mm	5.0mm	45mm
1.3mm	1.3mm	5.5mm	1.3mm	1.3mm	5.5mm	48mm
1.4mm	1.4mm	5.75mm	1.4mm	1.4mm	5.75mm	50mm
1.5mm	1.5mm	6.0mm	1.5mm	1.5mm	6.0mm	52mm
1.6mm	1.6mm	6.5mm	1.6mm	1.6mm	6.5mm	55mm
1.8mm	1.8mm	6.75mm	1.8mm	1.8mm	6.75mm	58mm
1.9mm	1.9mm	7.5mm	1.9mm	1.9mm	7.5mm	60mm
2.0mm	2.0mm	7.75mm	2.0mm	2.0mm	7.75mm	62mm
2.1mm	2.1mm	8.0mm	2.1mm	2.1mm	8.0mm	65mm
2.2mm	2.2mm	8.5mm	2.2mm	2.2mm	8.5mm	68mm
2.4mm	2.4mm	8.75mm	2.4mm	2.4mm	8.75mm	70mm
2.5mm	2.5mm	9.5mm	2.5mm	2.5mm	9.5mm	72mm
2.6mm	2.6mm	9.75mm	2.6mm	2.6mm	9.75mm	75mm
2.7mm	2.7mm	10mm	2.7mm	2.7mm	10mm	80mm
2.8mm	2.8mm	10.5mm	2.8mm	2.8mm	10.5mm	82mm
3.0mm	3.0mm	11.5mm	3.0mm	3.0mm	11.5mm	85mm
3.2mm	3.2mm	11.75mm	3.2mm	3.2mm	11.75mm	90mm
3.4mm	3.4mm	12mm	3.4mm	3.4mm	12mm	100mm
3.5mm	3.5mm	12.5mm	3.5mm	3.5mm	12.5mm	110mm
3.6mm	3.6mm	12.75mm	3.6mm	3.6mm	12.75mm	120mm
3.8mm	3.8mm	13.75mm	3.8mm	3.8mm	13.75mm	140mm
4.0mm	4.0mm	14mm	4.0mm	4.0mm	14mm	150mm
4.2mm	4.2mm	14.5mm	4.2mm	4.2mm	14.5mm	160mm
4.5mm	4.5mm	14.75mm	4.5mm	4.5mm	14.75mm	170mm
4.6mm	4.6mm	15mm	4.6mm	4.6mm	15mm	180mm
4.8mm	4.8mm	15.5mm	4.8mm	4.8mm	15.5mm	190mm
5.0mm	5.0mm	16mm	5.0mm	5.0mm	16mm	200mm

Grade	Yield Strength MPa≥	Tensile Strength MPa≥	Elongation A%≥
DX51D Z/ZM/AZ/AM	240-380	270-500	22
DX52D Z/ZM/AZ/AM	140-300	270-420	26
DX53D Z/ZM/AZ/AM	140-260	270-380	30
DX54D Z/ZM/AZ/AM	120-220	260-350	36
S220GD Z/ZM/AM	220	300	20
S250GD Z/ZM/AZ/AM	250	330	19
S280GD Z/ZM/AM	280	360	18
S300GD A/AM	300	380	18
S320GD Z/ZM/AM	320	390	17
S350GD Z/ZM/AZ/AM	350	420	16
S450GD A/AM	450	480	15
S550GD Z/ZM/AZ/AM	550	550	-



• Selection Guide: DX52D+AZ VS DX53D+AZ VS DX54D+AZ



DX52D+AZ: Standard deep drawing, cost-effective - for common construction and simple appliance parts.

DX53D+AZ: Super deep drawing, balanced performance - for regular automotive inner parts and medium-complexity stamped products.

DX54D+AZ: Extra deep drawing, ultra high formability - preferred for high difficulty deep drawing, multi-pass stamping and ultra-thin material processing.







1.Can Galvalume Steel be used in coastal or marine areas?

Answer: Galvalume is highly durable, but for projects within 1,500 feet of salt water, we recommend specific high-build coatings or heavier AZ weights. For extreme salt-spray exposure, please consult our technical team for specialized solutions.



2. Is Galvalume Steel compatible with copper or treated lumber?

Answer: No. Galvalume should not come into contact with copper pipes or pressure-treated lumber, as this can cause electrolytic corrosion. Always use compatible fasteners and runoff management to protect the alloy coating.



3. What is "Anti-Fingerprint" (AFP) treatment on Galvalume sheets?

Answer: AFP is a specialized resin coating applied over the Galvalume layer. It prevents smudging during installation, enhances scratch resistance, and adds an extra layer of protection against "black rust" during storage.



4. What is the difference between Prepainted Galvalume (PPGL) and bare Galvalume?

Answer: Bare Galvalume has a natural silver spangle finish. Prepainted Galvalume (PPGL) features a factory-applied paint system (like PVDF or PE) over the alloy, providing both custom colors and enhanced chemical resistance.



5. Can Galvalume Steel be easily formed or bent?

Answer: Yes. Our Galvalume Steel Coils are designed for excellent formability. They can be roll-formed into complex roofing profiles or deep-drawn without the coating cracking or peeling.
