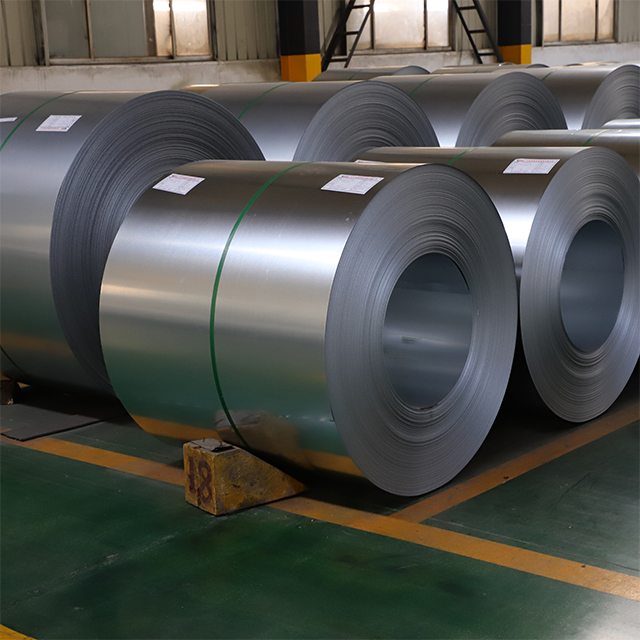

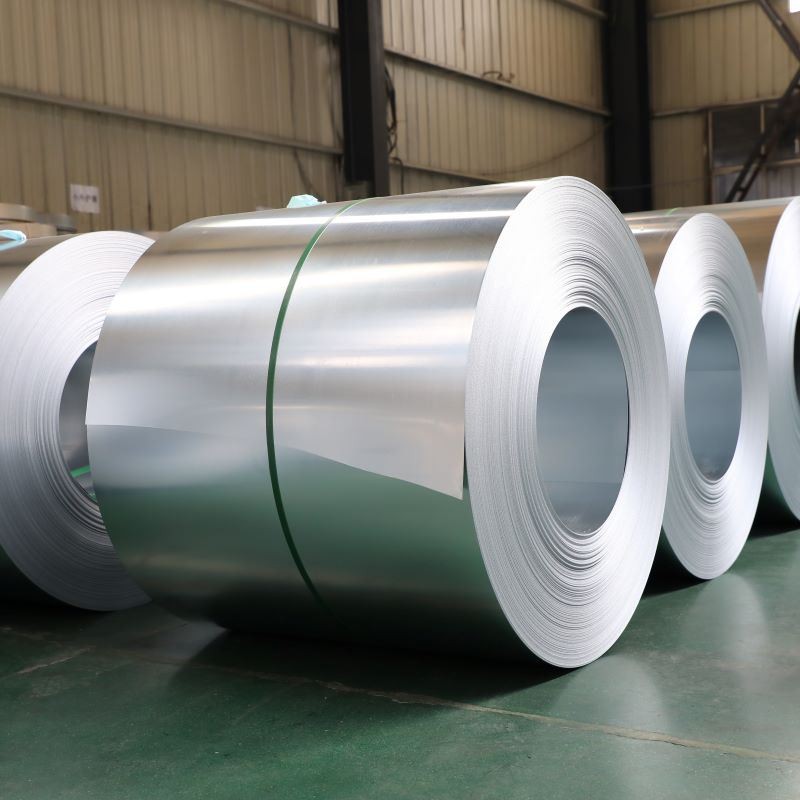

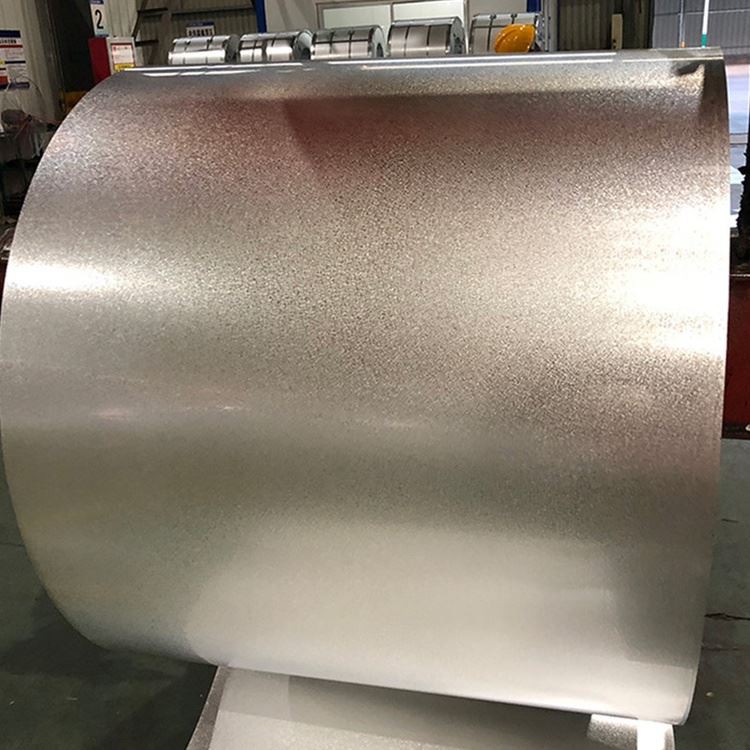

DX52D+AZ150 AZ180 AZ200 Galvalume Steel Coil



DX52D+AZ is a cold-forming grade Galvalume steel coil (EN 10346 standard) with a 55% Al–43.5% Zn–1.5% Si alloy coating, delivering 3–6× longer corrosion resistance than regular galvanized steel. The DX52D substrate offers excellent deep drawability (lower yield strength, higher elongation) for complex bending/stamping without cracking. The AZ coating provides dual protection: aluminum's dense oxide barrier + zinc's sacrificial cathodic protection, plus silicon to enhance coating adhesion and high-temperature stability.

Coating Grade	Coating Weight (Double-Sided)	Single-Side Thickness	Key Performance	Best For
AZ150	150 g/m²	~18 μm	240+ hours salt spray resistance; cost-performance sweet spot	General construction, roofing, appliances, indoor/outdoor mild corrosion
AZ180	180 g/m²	~22 μm	360+ hours salt spray resistance; enhanced durability	Coastal areas, industrial zones, HVAC, moderate corrosion
AZ200	200 g/m²	~24 μm	480+ hours salt spray resistance; ultra-heavy protection	Harsh coastal/chemical environments, long-service roofing



• AZ150 Galvalume Coil (150 g/m² Double-Sided)

Coating weight: 150 g/m² (double-sided), ~18 μm single-side thickness

Performance: 240+ hours salt spray resistance; balanced protection & cost



• AZ180 Galvalume Coil (180 g/m² Double-Sided)

Coating weight: 180 g/m² (double-sided), ~22 μm single-side thickness

Performance: 360+ hours salt spray resistance; enhanced durability for moderate corrosion



• AZ200 Galvalume Coil (200 g/m² Double-Sided)

Coating weight: 200 g/m² (double-sided), ~24 μm single-side thickness

Performance: 480+ hours salt spray resistance; ultra-heavy protection for harsh environments

Grade	Yield Strength MPa≥	Tensile Strength MPa≥	Elongation A%≥
DX51D Z/ZM/AZ/AM	240-380	270-500	22
DX52D Z/ZM/AZ/AM	140-300	270-420	26
DX53D Z/ZM/AZ/AM	140-260	270-380	30
DX54D Z/ZM/AZ/AM	120-220	260-350	36
S220GD Z/ZM/AM	220	300	20
S250GD Z/ZM/AZ/AM	250	330	19
S280GD Z/ZM/AM	280	360	18
S300GD A/AM	300	380	18
S320GD Z/ZM/AM	320	390	17
S350GD Z/ZM/AZ/AM	350	420	16
S450GD A/AM	450	480	15
S550GD Z/ZM/AZ/AM	550	550	-

Premium DX52D Substrate: Lower yield strength, higher elongation for flawless cold forming (deep drawing, bending, stamping).

Controlled AZ Coating: Strict weight tolerance (±5 g/m²) for consistent corrosion protection across AZ150/AZ180/AZ200.

Rigorous Quality Control: 100% salt spray, coating weight, and mechanical testing; ISO 9001 certified.

Custom Solutions: Custom thickness/width/coating; slitting, cutting, leveling services available.

Competitive Pricing: Factory direct sales, stable supply, fast delivery (7–15 days).



Construction: Roofing sheets, wall panels, gutters, downspouts, structural components

Appliances: Refrigerator panels, washing machine casings, oven parts, HVAC components

Automotive: Non-structural body panels, brackets, seat frames, corrosion-resistant parts

Agriculture: Barns, fencing, equipment housings, silos

Industrial: Ductwork, metal furniture, electrical enclosures, chemical plant equipment



Chinese Standard	European Standards	American Standard	Japanese Standard
DC51D+AZ	DX51D+AZ	CS Type B, Type C	SGLCC
DC52D+AZ	DX52D+AZ	DS	SGLCD
S250GD+AZ	S250GD+AZ	255	-
S300GD+AZ	-	-	-
S350GD+AZ	S350GD+AZ	345	Class1 SGLC490
S550GD+AZ	S550GD+AZ	550	SGLC570



Q1: What is DX52D+AZ Galvalume steel coil?

A1: It's a cold-forming grade steel coil with a 55% Al–43.5% Zn–1.5% Si alloy coating (AZ) on DX52D low-carbon steel substrate, offering high formability and superior corrosion resistance.



Q2: What's the difference between AZ150, AZ180, and AZ200?

A2: The difference is coating weight (double-sided): AZ150=150 g/m², AZ180=180 g/m², AZ200=200 g/m². Higher weight = thicker coating = better corrosion resistance but higher cost.



Q3: How long does DX52D+AZ Galvalume coil last?

A3: Up to 25 years in normal environments, 3–6× longer than galvanized steel. AZ200 lasts longest in harsh coastal/industrial areas.



Q4: Is DX52D+AZ suitable for deep drawing?

A4: Yes. The DX52D grade has lower yield strength and higher elongation, ideal for complex bending, deep drawing, and stamping without cracking.



Q5: What's the salt spray resistance of each AZ grade?

A5: AZ150: 240+ hours, AZ180: 360+ hours, AZ200: 480+ hours (no red rust).



Q6: Can you provide custom sizes and coatings?

A6: Yes. We offer custom thickness (0.4–3.0 mm), width (500–1500 mm), and AZ coatings from AZ50 to AZ275.



Q7: What certifications do you have?

A7: ISO 9001, CE, and third-party test reports (salt spray, coating weight, mechanical properties) available.
