Products Description

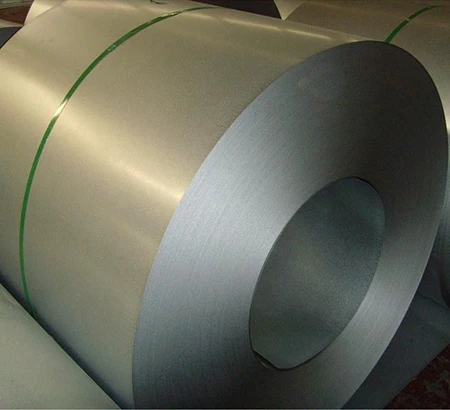

Galvalume coil is a kind of aluminum-plated zinc alloy treatment method to form a coil with high strength, excellent corrosion resistance and beautiful appearance on the surface of steel, with high corrosion resistance and air pollution resistance. Galvalume coil also has good surface decoration, and can be processed into a variety of beautiful building and home appliance materials.
The production process of aluminum zinc plating is as follows:
Uncoiling-cleaning-annealing-zinc pot-cooling-air knife-straightening-post-treatment-coiling
Heat Reflection
People use it as a thermal insulation material, and its thermal reflectivity is up to twice that of galvanized steel.
Heat Resistance
Galvanized steel coil has good heat resistance and can withstand high temperatures above 300°C, which is very similar to the oxidation resistance of aluminized steel at high temperatures. Commonly used in chimney tubes, ovens, illuminators, fluorescent lampshades, etc.
Corrosion Resistance
The key to the corrosion resistance of aluminized zinc steel coil is the protective performance of aluminum. Once the zinc is worn, the aluminum forms a dense layer of aluminum oxide, preventing further internal corrosion.
Economy
The density of 55% AL-Zn is smaller than that of Zn. Therefore, when the coating weight and thickness are the same, the area of the aluminum-zinc plated steel sheet is 3% larger than that of the galvanized steel sheet.
Easy to Paint
The coating material on the aluminized zinc steel plate has excellent adhesion, and can be directly coated with tar on advertising boards and common plates without pretreatment such as weathering.
Product Parameters
|
Product Name |
Galvalume Steel Coil |
|
Thickness |
0.12mm-3.00mm |
|
Width |
600mm-1500mm |
|
Standard |
AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc. |
|
Thickness of Aluminum Zinc Coating |
30-185g/m² |
|
Content of Al-Zn Coating |
Al: 55%, Zn: 43.5%, Si: 1.5% |
Chemical Composition
|
Al |
Zn |
Si |
Fe |
Cu |
Cd |
Pb |
Sn |
Ni |
Close Cr |
|
55-58 |
41-43 |
1.5-2 |
0.25 |
0.03 |
0.05 |
0.01 |
0.05 |
0.05 |
0.05 |
Mechanical Properties
|
Grade |
Yield Strength MPa≥ |
Tensile Strength MPa≥ |
Elongation A%≥ |
|
DX51D Z/ZM/AZ/AM |
240-380 |
270-500 |
22 |
|
DX52D Z/ZM/AZ/AM |
140-300 |
270-420 |
26 |
|
DX53D Z/ZM/AZ/AM |
140-260 |
270-380 |
30 |
|
DX54D Z/ZM/AZ/AM |
120-220 |
260-350 |
36 |
|
S220GD Z/ZM/AM |
220 |
300 |
20 |
|
S250GD Z/ZM/AZ/AM |
250 |
330 |
19 |
|
S280GD Z/ZM/AM |
280 |
360 |
18 |
|
S300GD A/AM |
300 |
380 |
18 |
|
S320GD Z/ZM/AM |
320 |
390 |
17 |
|
S350GD Z/ZM/AZ/AM |
350 |
420 |
16 |
|
S450GD A/AM |
450 |
480 |
15 |
|
S550GD Z/ZM/AZ/AM |
550 |
550 |
- |
|
Use of The Environment |
Recommended Zinc Thickness |
|
Indoor Use |
AZ30 or AZ185 (30g/㎡or 185g/㎡) |
|
Suburbs |
AZ30 and Painting (30g/㎡) |
|
Urban or Industrial Area |
AZ185 (185g/㎡) |
|
Coastal Area |
Thicker than AZ185 (185g/㎡) |
|
Punch or Deep Drawing Application |
Thicker than AZ185 (185grams/㎡) |
|
Surface Treatment Type |
Code |
Features |
|
Chromic Acid Treatment |
C |
Good corrosion resistance, suitable for bare state |
|
Chromic Acid Treatment+Oiling |
S |
Good corrosion resistance |
|
Phosphoric Acid Treatment (Including Sealing Treatment) |
P |
Have a certain corrosion resistance, good paint performance |
|
Phosphoric Acid Treatment (Including Sealing Treatment)+Oiling |
Q |
Has a certain corrosion resistance, good paint performance, prevent rust during transportation and storage |
|
Phosphoric Acid Treatment (Excluding Sealing Treatment) |
T |
Have a certain corrosion resistance, good paint performance |
|
Phosphoric Acid Treatment (Excluding Sealing Treatment)+Oiling |
V |
Has a certain corrosion resistance, good paint performance, and prevent rust |
|
Oiling |
O |
Prevent rust during transportation and storage |
|
No Treatment |
M |
Suitable for immediate painting |
Material Comparison
| Chinese Standard | European Standards | American Standard | Japanese Standard |
| DC51D+AZ | DX51D+AZ | CS Type B, Type C | SGLCC |
| DC52D+AZ | DX52D+AZ | DS | SGLCD |
| S250GD+AZ | S250GD+AZ | 255 | - |
| S300GD+AZ | - | - | - |
| S350GD+AZ | S350GD+AZ | 345 | Class1 SGLC490 |
| S550GD+AZ | S550GD+AZ | 550 | SGLC570 |
FAQ
1. Can Galvalume handle high temperatures?
Yes. Galvalume can withstand temperatures up to 315°C (600°F) without discoloration and even higher temperatures before the coating is compromised, making it ideal for flue pipes and appliances.
2. How do I maintain a Galvalume roof?
Maintenance is minimal. It is recommended to rinse the surface with clean water once a year to remove salt, dust, or organic debris that could trap moisture against the metal.
3. Is Galvalume more expensive than Galvanized?
Initially, Galvalume may have a slightly higher price point per ton than Galvanized steel, but its lower life-cycle cost (due to longevity) makes it more economical over time.
4. What is "Anti-Fingerprint" (AFP) Galvalume?
AFP is a thin organic coating applied over the Galvalume surface. It prevents fingerprints during installation, improves roll-forming lubrication, and adds an extra layer of protection against temporary storage stains.
5. Can I use Galvalume for rain gutters?
Yes, but you must ensure the entire drainage system is compatible. Avoid mixing Galvalume gutters with copper downspouts to prevent galvanic corrosion.
