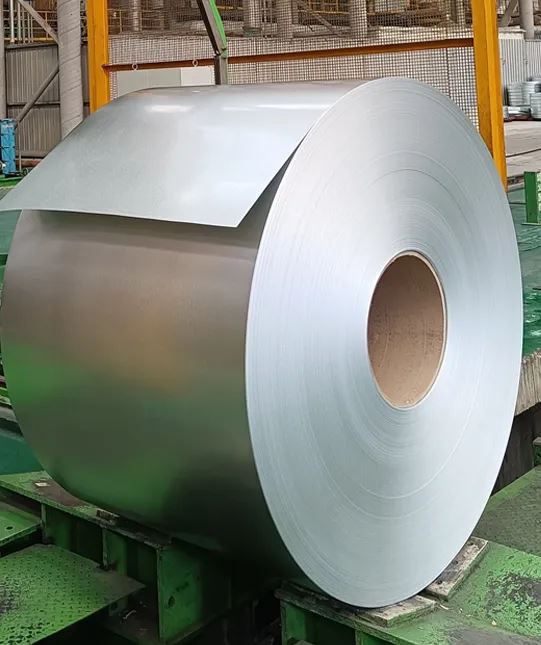

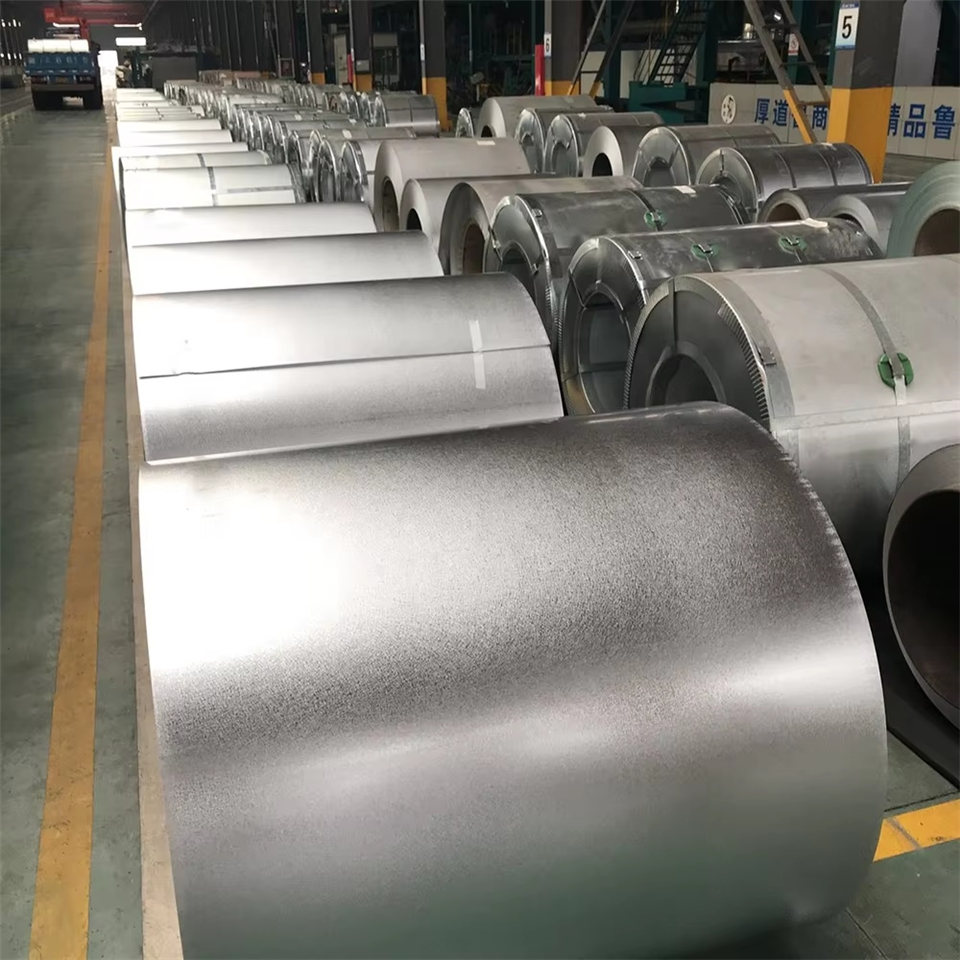

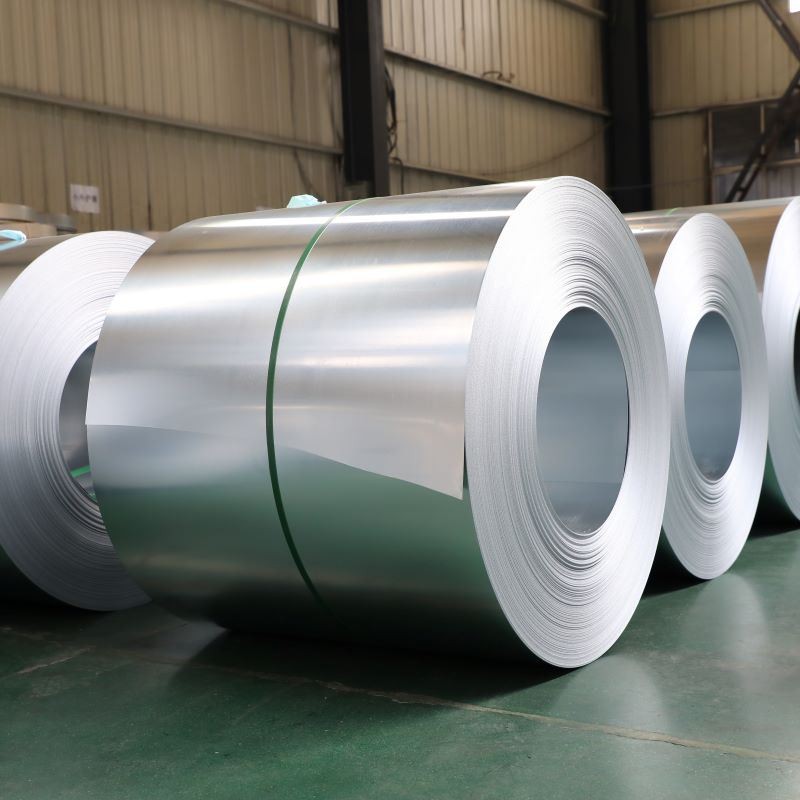

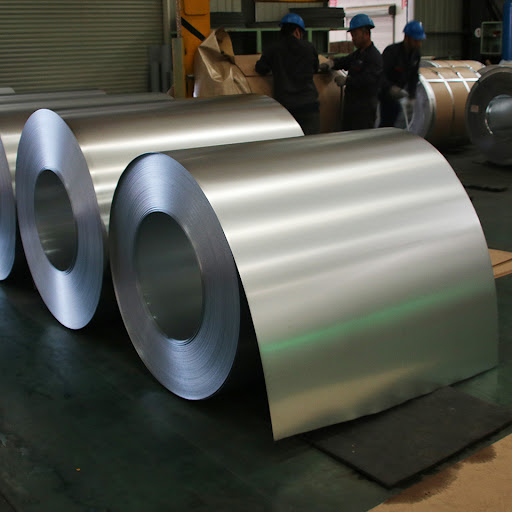

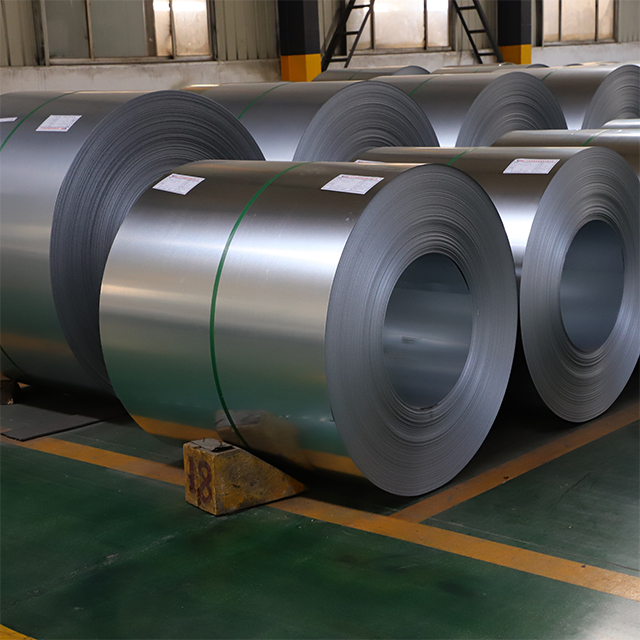

S550GD AZ50 55 150 Galvalume Steel Coil



S550GD+AZ galvalume steel coil is a high-strength structural hot-dip Al-Zn coated steel complying with EN 10346 standard. It is produced by coating cold-rolled steel substrate with 55% aluminum-zinc alloy via continuous hot-dip process, combining ultra-high yield strength, outstanding atmospheric corrosion resistance and good structural formability.



• S550GD:S stands for structural steel; the number 550 refers to the minimum yield strength of 550MPa. GD indicates the structural-grade base material specially designed for hot-dip galvalume coating, with stable bending and load-bearing performance.



• AZ Coating:AZ represents galvalume coating composed of 55% Al, 43.4% Zn and 1.6% silicon. Common coating weights include AZ100, AZ150, AZ200 for customized demands.

In addition we can also produce galvalume with lower coating weight, please contact sales.



Product Name	S550GD+AZ PRIME GALVALUME STEEL COIL
Grade	DX51D/DX52D/DX53D
AZ Coating	AZ20-AZ275
Width Range	600mm-1219mm
Thickness Range	0.14-0.8mm
Standard	ASTM A463
Coil Weight	3-8mts
Coil Diameter	508mm & 610mm
Packing	Standard Seathworthy Package



1. Unique Aluminum-Zinc Alloy Coating: Galvalume Steel Coil is coated with a unique alloy composition of 55% aluminum, 43.4% zinc, and 1.6% silicon, which provides a different protective mechanism than standard zinc coatings.

2. Superior Corrosion Resistance: This specific coating formula offers superior corrosion resistance, significantly outperforming traditional galvanized steel, especially in harsh environments like marine and industrial areas.

3. Excellent Durability and Functional Properties: The product offers excellent durability, heat reflectivity, and formability, making it a high-performance material for demanding applications.

4. Wide Range of Outdoor and Structural Applications: Galvalume steel is widely used in roofing, siding, HVAC systems, and agricultural buildings where long-term exposure to the elements is a key concern.

5. Reliable and Cost-Effective Long-Term Solution: Our Galvalume coils are designed to be a reliable and cost-effective choice, combining the strength of steel with enhanced protection for a variety of industrial and commercial uses.



Galvalume steel grades and properties
grades	Yield strength/Mpa	Tensile strength/Mpa	Elongation at break/%
DX51D+AZ	≤360	≤440	192PCS
DX52D+AZ	≤260	300-360	180PCS
DX53D+AZ	≤200	270-320	144PCS
DX54D+AZ	≤180	270-310	108PCS
S250GD+AZ	≥250	≥330	108PCS
S350GD+AZ	≥350	≥420
S450GD+AZ	≥450	≥510
S550GD+AZ	≥550	≥560
LG550GD+AZ	≥550	≥560



1. Does Galvalume reflect heat?

Yes, Galvalume has high solar reflectivity. It reflects a significant amount of solar radiation, which helps keep buildings cooler and reduces energy costs in the summer.



2. Can Galvalume be used with pressure-treated wood?

No. The chemicals in modern pressure-treated lumber (like copper) react electrolytically with the Galvalume coating, leading to rapid corrosion. Use a barrier or choose different materials.



3. Is Galvalume steel environmentally friendly?

Yes, it is 100% recyclable. Additionally, its long lifespan and energy-saving reflective properties make it a sustainable choice for "green" building.



4. What is the standard thickness (gauge) for Galvalume roofing?

The most common gauges for residential and commercial roofing are 24 gauge and 26 gauge, though it is available in thinner or thicker options depending on the structural needs.



5. What does the "55% Al-Zn" mean?

It refers to the weight ratio of the coating. The 55% aluminum provides a durable barrier against the elements, while the zinc ensures that if the steel is scratched, the coating "sacrifices" itself to protect the exposed metal.
