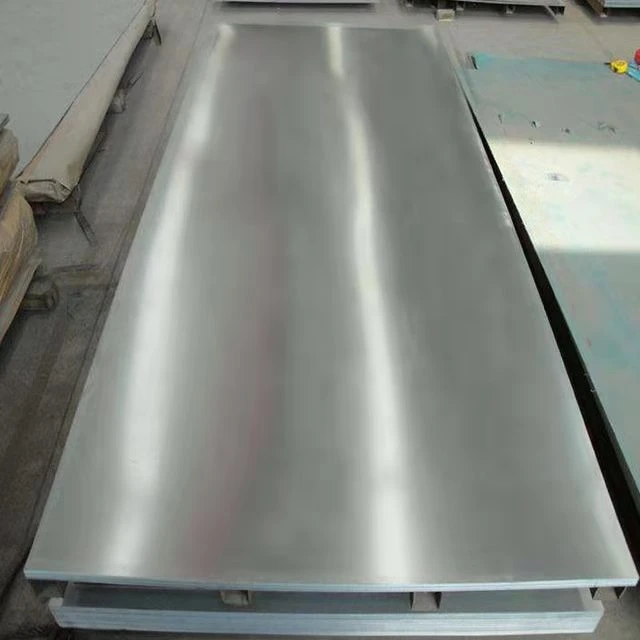

Hot-dipped Steel in Sheet

Hot-dipped galvanized steel is a material produced by running cold rolled steel sheet in coil form through a molten zinc pot therefore creating an even layer of zinc coating on top of the cold rolled steel. Zinc is chosen as the coating material because it protects the steel by acting as a sacrificial layer. If, for some reason, rust does take hold on the surface of galvanized steel, the zinc will get corroded first. This allows the zinc to prevent rust from reaching the steel.

Our company employs a continuous galvanizing line (CGL) that produces both Zn-coated steel coils or (hot -dipped galvanized) and Zn-Fe coated steel coils (Galvannealed steel). The production capacity of the CGL is 300,000 tons per year, and its available sizes are 0.3 – 2.4mm in thickness, 850-1676mm in width, with the maximum coil weight of 22 tons, the maximum outer diameter of 1980mm, and the inner diameters of 508 mm & 610 mm.

Hot-dipped galvanized steel is mainly used in manufacturing car bodies and appliance parts, etc. The thickness of the zinc coating, which can be made according to customer requests, together with the suitable chemical treatment (e.g. chromate coating treatment, or chromate-free, anti- finger print treatment), enables our hot-dip galvanized steel coils to become truly diversified products, with an excellent finish.

Product Name	Galvanized Steel Sheet
Length	1-12m or as required
Width	600mm-1250mmor as required
Thickness	0.4mm-320mm or as required
Standard	AISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc.
Technique	Cold rolled,hot rolled
Surface Treatment	Clean, blasting and painting according to customer requirement
Thickness tolerance	±0.15mm
Material	DX51D,Z275,G90,G550,A36,SGCC,SG,DX52D,DX53DQ345,Q345A,Q345B,Q345C,Q345D,Q345E,Q235B HC340LA,HC380LA,HC420LA B340LA,B410LA 15CRMO,12Cr1MoV,20CR,40CR,65MN A709GR50
Coatings	Top Coats :5 micron primer + 20 micron colour Back Coat: 5 micron primer – 7 micron primer
MOQ	1tons.We also can accept sample order.
Shipment time	Within 2-15 workdays after receiving deposit or L/C
Export packing	Waterproof paper, and steel strip packed. Standard Export Seaworthy Package.Suit for all kinds of transport,or as required
