DC05 vs DC03 cold rolled steel
When comparing DC05 vs DC03 cold rolled steel, the primary concern for engineers and buyers is formability under deep drawing and high deformation conditions. Both grades are defined under EN 10130 and widely used in precision manufacturing, but they differ significantly in mechanical behavior and application suitability.
Understanding DC05 Cold Rolled Steel
DC05 cold rolled steel is a high-formability grade optimized for deep drawing applications. It exhibits very high elongation and low yield strength, enabling complex component forming with minimal defects. DC05 is often chosen for high-precision automotive parts, deep-drawn housings, and components with significant stretching.

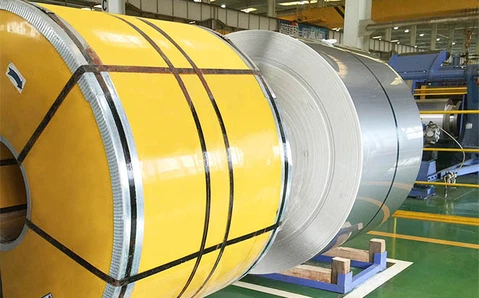

Cold Rolled Steel
Chemical Composition Overview
| Steel Grade | Carbon (C) | Manganese (Mn) | Phosphorus (P) | Sulphur (S) |
|---|---|---|---|---|
| DC03 | ≤0.10% | ≤0.45% | ≤0.025% | ≤0.025% |
| DC05 | ≤0.10% | ≤0.60% | ≤0.025% | ≤0.025% |
DC05's slightly wider alloying range supports its superior elongation, making it suitable for more challenging forming operations.
Mechanical Property Comparison
| Property | DC03 | DC05 |
|---|---|---|
| Yield Strength | ≤ 240 MPa | ≤ 220 MPa |
| Tensile Strength | 270 – 370 MPa | 260 – 350 MPa |
| Elongation (A80) | ≥ 28% | ≥ 35% |
| Deep Drawing Capability | Good | Excellent |
The higher elongation and lower yield strength of DC05 enhance its deep drawing capability, especially for components with significant stretching.
Formability and Application Differences
- DC03 cold rolled steel: Offers good overall formability and surface quality for moderate forming tasks.
- DC05 cold rolled steel: Designed for high deep drawing applications, such as automotive body panels with complex contours, deep-drawn brackets, and precision metal parts requiring minimal springback.
DC05 is often the preferred choice in manufacturing environments where component geometry demands extensive plastic deformation.
Surface Quality and Processing
Both DC03 and DC05 are available as cold rolled steel sheet and cold rolled steel coil with consistent surface finishes suitable for further processing, such as painting or coating. DC05 typically requires careful handling due to its softer properties, but its excellent surface quality supports high-precision end products.
Cost and Production Impact
DC05 is usually priced higher than DC03 because of its enhanced formability and more stringent production controls. However, for deep drawing applications, DC05 can reduce tooling wear and increase yield, potentially lowering overall manufacturing cost.
Typical Uses
- DC03: Appliance panels, moderate drawing automotive parts, general fabrication.
- DC05: Complex deep-drawn automotive body components, precision metal housings, products requiring high elongation.
