Hot-dip galvanized steel

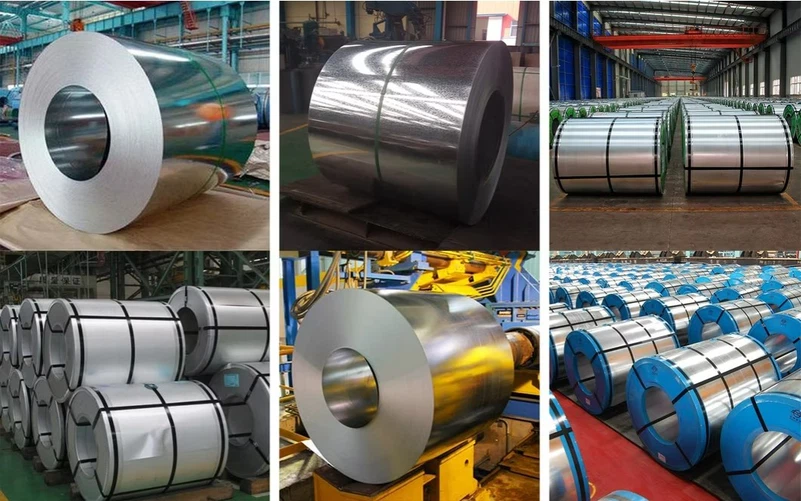

The hot-dip galvanized steel S280GD in accordance with EN 10346 combines a high minimum yield strength of 280 N/mm² with first-class corrosion protection and excellent ease of processing. With its wide range of coating variants, it covers a broad spectrum of environmental and operating conditions – from moderate to extremely corrosive or thermally stressed environments. Whether roof and façade systems, drainage components or lightweight steel structures: S280GD offers construction companies and planners a durable, reliable and economical material solution for demanding construction projects.
How Does S280GD Perform In Extreme Temperatures?
GNEE STEEL S280GD galvanized steel, especially the version with +AZ (aluminum zinc) coating, performs well in high temperature environments and maintains structural integrity. Our products are precisely controlled to ensure reliable performance in extreme temperatures.
Mechanical Properties
| Parameter | Standard Requirement | Typical Value |
| Yield Strength (Rp0.2) | ≥280 MPa | 300-330 MPa |
| Tensile Strength (Rm) | 380-500 MPa | 400-460 MPa |
| Elongation (A80mm) | ≥12% | 15-18% |
| Bendability | 180° d=0a | No cracking |
Global Standard Grade Comparison
| Property | Europe EN 10346 | China GB/T 2518 | USA ASTM A653 | Japan JIS G3302 |
| Grade | S280GD+Z | S280GD+Z | SS Grade 40 | SGCC440 |
| Yield Strength | ≥280 MPa | ≥280 MPa | ≥275 MPa | ≥440 MPa |
S280GD Steel Properties
High Corrosion Resistance:
The hot-dip galvanizing process creates a durable zinc coating that effectively prevents rust, ensuring the steel can withstand prolonged exposure to humidity and wet conditions.
Enhanced Structural Stability:
S280GD maintains its mechanical performance under both static and dynamic loads, making it reliable for load-bearing frameworks and dynamic structures like bridges and cranes.
Excellent Formability:
This steel grade can be easily shaped into complex components such as roofing profiles, wall cladding, and structural panels without cracking or losing surface quality.
Strong Coating Adhesion:
The zinc coating is tightly bonded to the steel surface, ensuring long-term corrosion protection even after cutting, bending, or forming.
Outstanding Weather Resistance:
S280GD resists environmental wear in harsh climates, including prolonged exposure to rain, snow, and temperature fluctuations, ensuring a consistent performance over time.
High Heat Reflectivity and Insulation Capability:
Its surface can reflect a significant amount of radiant heat, helping to maintain stable interior temperatures in structures and making it an effective material for energy-efficient roofing or insulation.
Available Steel Grade
Standard | Grade | C | Si | Mn | P | S | Ti |
Forcold Forming Chinese Standard | DX51D+Z | 0.12 | 0.50 | 0.60 | 0.100 | 0.045 | 0.30 |
DX52D+Z | 0.12 | 0.50 | 0.60 | 0.100 | 0.045 | 0.30 | |
DX53D+Z | 0.12 | 0.50 | 0.60 | 0.100 | 0.045 | 0.30 | |
DX54D+Z | 0.12 | 0.50 | 0.60 | 0.100 | 0.045 | 0.30 | |
DX56D+Z | 0.12 | 0.50 | 0.60 | 0.100 | 0.045 | 0.30 | |
DX57D+Z | 0.12 | 0.50 | 0.60 | 0.100 | 0.045 | 0.30 | |
Forcold Forming Japanese Standard | SGCC | 0.15 | 0.50 | 0.80 | 0.050 | 0.030 | 0.025 |
SGCD1 | 0.12 | 0.50 | 0.60 | 0.040 | 0.030 | 0.025 | |
SGCD3 | 0.08 | 0.50 | 0.45 | 0.030 | 0.030 | 0.025 | |
SGCD4 | 0.06 | 0.50 | 0.45 | 0.030 | 0.030 | 0.025 | |
For Structure Japanese Standard | SGC340 | 0.25 | 0.50 | 1.70 | 0.200 | 0.035 | 0.025 |
SGC400 | 0.25 | 0.50 | 1.70 | 0.200 | 0.035 | 0.150 | |
SGC490 | 0.30 | 0.50 | 2.00 | 0.200 | 0.035 | 0.025 | |
SGC510 | 0.30 | 0.50 | 2.50 | 0.200 | 0.035 | 0.025 | |
For Structure AISI Standard | S220GD+Z | 0.20 | 0.60 | 0.70 | 0.100 | 0.045 | 0.025 |
S250GD+Z | 0.20 | 0.60 | 0.70 | 0.100 | 0.045 | 0.025 | |
S280GD+Z | 0.20 | 0.60 | 0.70 | 0.100 | 0.045 | 0.025 | |
S320GD+Z | 0.20 | 0.60 | 0.70 | 0.100 | 0.045 | 0.025 | |
S350GD+Z | 0.20 | 0.60 | 0.70 | 0.100 | 0.045 | 0.150 | |
S550GD+Z | 0.20 | 0.60 | 0.70 | 0.100 | 0.045 | 0.150 |
Mechanical Properties
Grade | Yield Strength MPa≥ | Tensile Strength MPa≥ | Elongation A%≥ |
DX51D Z/ZM/AZ/AM | 240-380 | 270-500 | 22 |
DX52D Z/ZM/AZ/AM | 140-300 | 270-420 | 26 |
DX53D Z/ZM/AZ/AM | 140-260 | 270-380 | 30 |
DX54D Z/ZM/AZ/AM | 120-220 | 260-350 | 36 |
S220GD Z/ZM/AM | 220 | 300 | 20 |
S250GD Z/ZM/AZ/AM | 250 | 330 | 19 |
S280GD Z/ZM/AM | 280 | 360 | 18 |
S300GD A/AM | 300 | 380 | 18 |
S320GD Z/ZM/AM | 320 | 390 | 17 |
S350GD Z/ZM/AZ/AM | 350 | 420 | 16 |
S450GD A/AM | 450 | 480 | 15 |
S550GD Z/ZM/AZ/AM | 550 | 550 | - |
FAQ：
Is S280GD suitable for outdoor and corrosive environments?
Yes - the zinc or alloy coatings significantly improve corrosion resistance.
What are common applications of S280GD?
Applications include roofing, wall cladding, structural frames, automotive parts, appliances, and HVAC systems.
Is S280GD easy to form and fabricate?
Yes - it has good bendability and formability for cold forming and roll forming processes.
Can S280GD be welded?
Yes - it provides good weldability with proper techniques and care for the coating.
How should S280GD be stored to maintain quality?
Store in a dry, ventilated place away from moisture to preserve the coating and prevent rust. (Based on standard best practices)
What are the equivalent grades in other standards?
Similar grades include ASTM A653/A653M structural grades and others by region/market.
Can the surface finish be pre-painted?
Yes - pre-painted finishes like PE, PVDF, SMP are options for enhanced aesthetics and protection.
