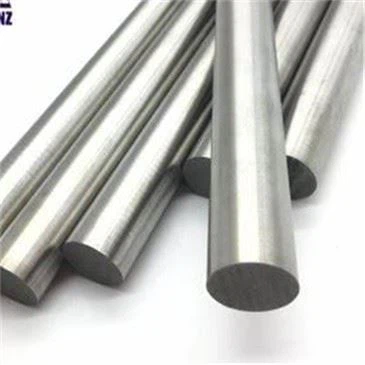

409 1.4512 X6CrTi12 Ferritic Stainless Steel

1.4512 409 stainless steel is a Ferritic steel that offers good mechanical properties and high-temperature corrosion resistance. It contains 11% chromium which is the minimum amount for the formation of the passive surface film which gives stainless steels their corrosion resistance. It combines good elevated temperature corrosion resistance with medium strength, good formability, and overall cost.

Chemical Composition	C%≤ 0.03Si≤ %1.00Mn≤ %1.00P≤ %0.04S≤ %0.015Cr%10.5-12.5Ti≤ %6x(C+N)

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
Rockwell B (HR B) max	Brinell (HB) max
409	450	240	25	75	131

Sizes

Hot Rolled Process – OD 30-500mm ; WT 3-60mm ; L 6-12meter

Cold Drawn Process – OD 10-200mm ; WT 0.5-20mm ; L 1-12meter

Cold Rolled Process – OD 6-200mm ; WT 0.1-20mm ; L 1-12meter

Surface

Acid pickling – pre-passivation process of treating stainless steel parts with an acid solution, typically hydrochloric or sulfuric acid, which can remove oxide scale and heat tint while dissolving steel flecks embedded in the part.

Polishing – P grade sandpaper: P150, P200, P250, P300, P400, P500, P600, P700, P800
