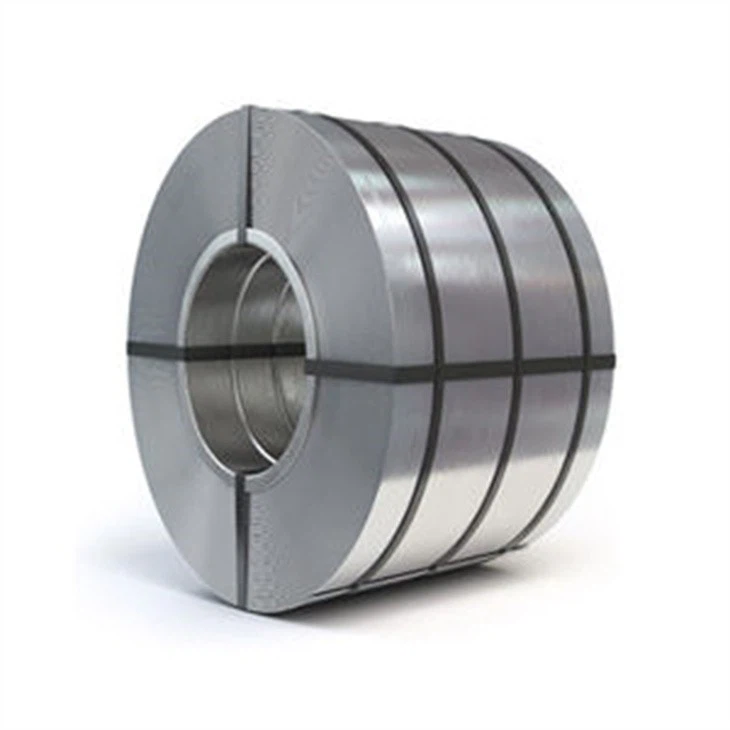

B35AH250 Non Grain Oriented Electrical steel
B35AH250 Silicon steel, also known as B35AH250 electrical steel or transformer steel, is a type of steel that is specifically designed for use in electrical applications. It is made by adding a small amount of silicon (typically between 1% and 4%) to steel, which has several effects on its properties.
B35AH250 steel Mechanical Properties
|
Grade |
Nominal thickness（mm） |
tensile strength L（N/mm2） |
Yield Strength L（N/mm2） |
Elongation L（%） |
Hardness HV1 |
Bending frequency (times) |
Stacking factor（%） |
|
B35AH250 |
0.35 |
7.65 |
471 |
337 |
25 |
185 |
≥15 |
B35AH250 steel Product Description
| Product Name | 0.23mm m19 cold rolled crgo laminated grain oriented silicon steel sheet for transformer iron core |
| Material | silicon steel |
| Grade | M19 |
| Capacity | about 2000 tons per month for the coil product |
| Brade | ZHANZHI |
| Width | 40mm-1200mm 1000/1100/1200(mm) or per customer's request |
| Nominal Thickness | 0.23mm |
| Max.Core Loss | 50w1300 7.5W/kg,50W800 5.8W/kg,50W600 4.2W/kg. |
| Min.Induction | 50w1300 1.74T,50W800 1.70T,50W600 1.67T. |
| Min.Lamination Factor | 97% |
