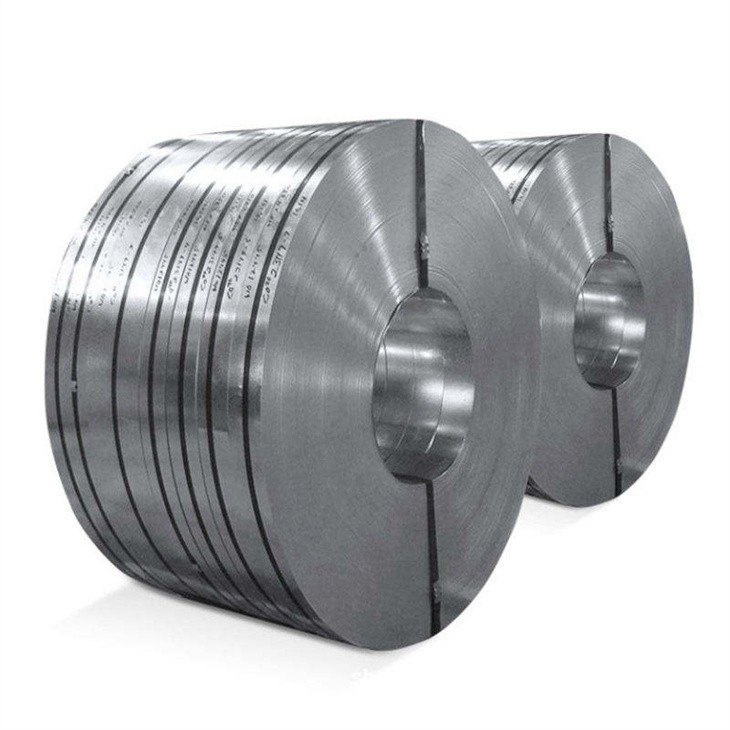

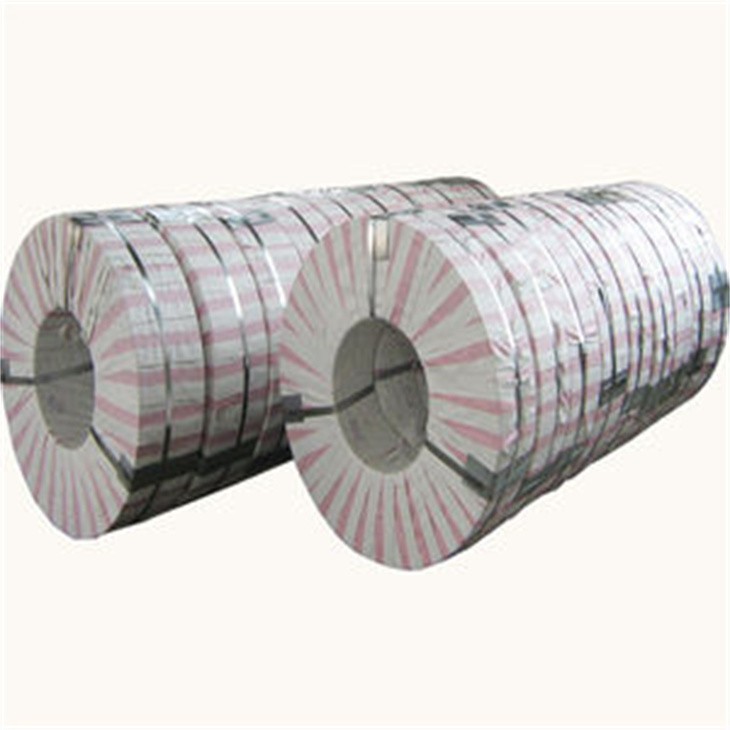

B65A1300 Non Grain Oriented Electrical steel
In electric power equipment, silicon steel is mainly used for manufacturing transformers, motors and generators.
Due to the growing energy crisis and environmental pollution, the demand for energy saving and environmental protection requirements are increasing, the silicon steel market is therefore receiving more attention.

B65A1300 steel Mechanical Properties
|
Grade |
Nominal thickness(mm) |
tensile strength L(N/mm2) |
Yield Strength L(N/mm2) |
Elongation L(%) |
Hardness HV1 |
Bending frequency (times) |
Stacking factor(%) |
|
B65A1300 |
0.65 |
7.85 |
357 |
231 |
41 |
110 |
≥15 |
B65A1300 steel plate/sheet Electromagnetic induction standard
|
Grade |
Nominal thickness(mm) |
Theoretical density(kg/dm3) |
Maximum core loss P17/50 |
minimum magnetic induction(T) |
|
B65A1300 |
0.65 |
7.85 |
13.00 |
1.69 |
B65A1300 Steel Detail Information
| Standard: | ASTM | Grade: | B65A1300 |
|---|---|---|---|
| Certificate: | Mill MTC ,Third Party Inspection | Mill: | TISCO, ZPSS,BAOSTEEL,etc |
| Process: | Cold Rolled | Thickness: | 0.2mm-0.65mm |
| Width: | 700mm-1250mm | Length: | Viable In Coil ,in Strip |
| Surface Finish: | Brushed ,Mirror , 2B,etc | High Light: |
B65A1300 Silicon Steel Coil,0.65 Mm Silicon Steel Coil |
B65A1300 steel low iron loss and high magnetic flux density, good punching surface of the insulating film adhesion and good weldability.
