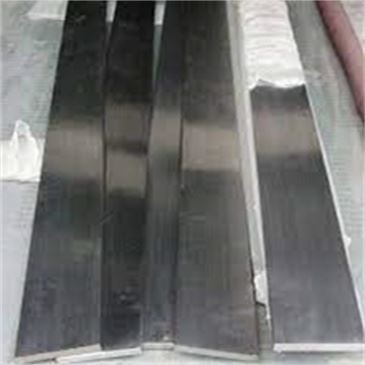

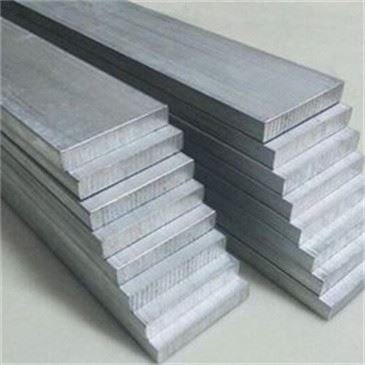

GNEE steel is a standard exporter of Stainless Steel 304L Flat Bars, which are used in furnace retort seals, fans and fixtures. SS 304L Flat Bars is a nickel-chromium alloy with an addition of aluminum for outstanding resistance to oxidation and other forms of high temperature corrosion. Alloy 304L Flat Bars are quite resistance to carburization is good, and also resistant to carbon nitriding conditions. Grade 304L Flat Bars has good high temperature strength, and retains its ductility after long service exposure. Type 304L Flat Bars was designed for service temperatures from cryogenic to elevated temperatures in the range of 2000 Degree F.
ASTM A276 STAINLESS STEEL 304L FLAT BARS EQUIVALENT GRADES
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 304L | 1.4306 / 1.4307 | S30403 | SUS 304L | 3304S11 | 03Х18Н11 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 18 – 20 | - | 8 – 13 | - |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
304L STAINLESS STEEL FLAT BAR SIZES
| SS 304L Flat bar sizes in mm | SS 304L Flat Bar Size (inch) | SS 304L Flat Bar Thickness (mm) | SS 304L Flat Bar Thickness (in Inches) |
| 22 | 7/8 | 17 & 18 | 2/3 - 5/7 |
| 25 | 1 | 5 to 20 | 3/16 - 4/5 |
| 30 | 1-3/16 | 5 to 20 | 3/16 - 4/5 |
| 32 | 1-1/4 | 6 to 20 | 1/4 - 4/5 |
| 35 | 1-3/8 | 5 to 20 | 3/16 - 3/16 |
| 40 | 1-4/7 | 5 to 25 | 3/16 - 1 |
| 45 | 1-7/9 | 5 to 25 | 3/16 - 1 |
| 47 | 1-6/7 | 17,25 & 32 | 2/3, 1 & 1-1/4 |
| 50 | 2 | 5 to 32 | 3/16 - 1-1/4 |
| 55 | 2-1/16 | 5 to 25 | 3/16 - 1 |
| 57 | 2-1/4 | 32 | 1-1/4 |
| 60 | 2-3/8 | 5 to 35 | 3/16 - 1-3/8 |
| 63 | 2-1/2 | 10 to 30 | 3/8 - 1-3/16 |
| 65 | 2-5/9 | 10 to 30 & 35 | 3/8 - 1-3/16, & 1-3/8 |
| 70 | 2-3/4 | 6 to 25 & 40 | 1/4 - 1, & 1-4/7 |
| 75 | 3 | 8 to 25 | 5/16 - 1 |
| 80 | 3-1/8 | 8 to 20 | 5/16 - 4/5 |
| 90 | 3-1/2 | 8 to 20 | 5/16- 4/5 |
| 100 | 4 | 8, 10, 12 | 5/16, 3/8, 1/2 |
Common uses of Stainless Steel Flat Bar 304/304L include:
Architectural Paneling
Bolts
Cutlery & Flatware
Food & Pharmaceutical Production Equipment
Nuts
Sanitary Ware & Troughs
Saucepans
Screws
Sinks & Splash Backs
Springs
