DC06 Cold Rolled Steel
What's the DC06 steel ?
EN 10130 is the European standard for cold-rolled, uncoated, low-carbon steel flat products with a rolled width of 600 mm or more intended for cold forming. The standard applies to products with a minimum thickness of 0.35 mm and-unless otherwise specified at the time of inquiry and order-a maximum thickness of 3 mm. Materials covered under this standard may be supplied as sheets, coils, slit coils, or cut lengths produced from coils or sheets.
The special deep-drawing grade DC06 is defined under the DIN EN 10130 standard, which applies to cold-rolled flat products made from low-carbon steels intended for cold forming. This standard specifies the performance requirements and testing methods for cold-rolled materials used across diverse industrial fields, particularly in applications where superior formability and high surface quality are essential.
DC06 is an ultra-low-carbon steel known for its exceptional cold-forming capability. Its chemical composition is strictly controlled to ensure stable mechanical performance. In most cases, DC06 contains no more than 0.01% carbon and up to 0.20% manganese, along with very small amounts of phosphorus and sulfur. This minimal alloying content is a key factor behind the steel's excellent formability and weldability.

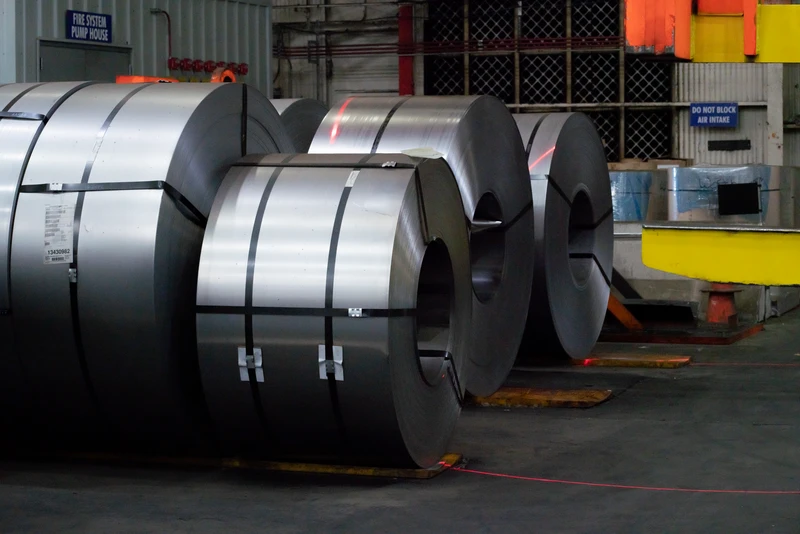

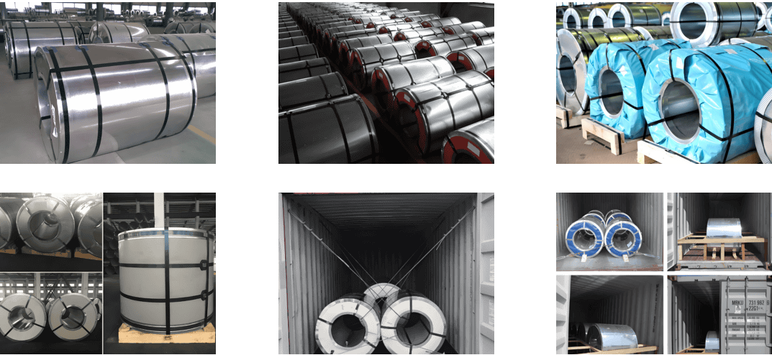

DC06 steel is available in coil, strip and sheet form, with thicknesses ranging from 0.35 mm to 3 mm.
DC06 cold-rolled steel is supplied in two surface quality grades: Type A and Type B.
It also offers four surface finish options: b (bright), g (semi-bright), m (normal) and r (rough).
DC06 is classified as an alloy quality steel, corresponding to material number 1.0873.
The mechanical properties of DC06 are precisely specified as follows: maximum yield strength of 170 MPa, tensile strength of 270–330 MPa, minimum total elongation of 41% over 80 mm, with r90 ≥ 2.1 and n90 ≥ 0.220.
The carbon content of DC06 is limited to a maximum of 0.02%.
Surface finish
| Surface finish | Identification | Center roughness value (limit wavelength: 0,80mm) |
|---|---|---|
| Extra smooth | b | Ra ≤ 0,40 µm |
| Smooth | g | Ra ≤ 0,90 µm |
| Matt | m | 0,6 μm < Ra ≤ 1,9 µm |
| Rough | r | Ra ≤ 1,6 μm |
| Quality | Standard | Material No. |
|---|---|---|
| DC06 | DIN EN 10130 | 1.0873 |
| DC06+ZE | DIN EN 10152 | 1.0873 |
| DIN EN Standard | Testing direction | Yield Point Re (MPa) |
Tensil Strength Rm (MPa) |
Elongation A80 (in %) |
r90 | n90 |
|---|---|---|---|---|---|---|
| 10130 | Q | ≤ 170 | 270 – 330 | ≥ 41 | ≥ 2,1 | ≥ 0,220 |
| 10152 | Q | ≤ 180 | 270 – 350 | ≥ 41 | ≥ 2,1 | ≥ 0,210 |
| C % |
Mn % |
P % |
S % |
Ti % |
|---|---|---|---|---|
| ≤ 0,02 | ≤ 0,25 | ≤ 0,020 | ≤ 0,020 | 0,3 |
FAQ
1. Q: What kind of material is DCO6 cold-rolled steel?
A: DCO6 is a super deep drawing quality cold-rolled soft steel, conforming to the DIN EN 10130 standard. It is primarily used in cold forming processes and is a low-carbon (Ti-alloyed IF steel) known for its excellent cold formability and deep drawing properties.
2. Q: What are the main characteristics of DCO6?
A: The main characteristic of DCO6 is its outstanding plasticity and ductility. It exhibits superior deep drawing performance even under various types of deformation, with a low yield strength and moderate tensile strength.
3. Q: What are the features of the chemical composition of DCO6?
A: DCO6 is an ultra-low carbon steel with a precisely defined chemical composition to ensure the required mechanical properties. It typically contains a maximum of 0.01% carbon, a maximum of 0.20% manganese, and minimal amounts of phosphorus and sulfur.
4. Q: What are the typical applications for DCO6 cold-rolled steel?
A: DCO6 is particularly suitable for manufacturing parts with complex shapes that require high deep drawing performance, such as automotive side panels, oil sumps, floor panels, and other complex stamped components.
