Products Description
Cold rolled steel plate plays a crucial role in modern manufacturing, especially in industries that demand high surface quality, tight dimensional tolerance, and stable mechanical performance. Among the most widely used cold rolled steel grades, DC01, DC03, DC04, DC05, DC06, and DC07 defined under EN 10130 are commonly selected for applications ranging from basic structural components to complex deep-drawing parts.
Carbon steel is an iron-carbon alloy, which contains up to 2.1 wt.% carbon. For carbon steels, there is no minimum specified content of other alloying elements, however, they often contain manganese. The maximum manganese, silicon and copper content should be less than 1.65 wt.%, 0.6 wt.% and 0.6 wt.%, respectively.
Cold rolled steel
What Is Cold Rolled Steel Plate?
Cold rolled steel plate is produced by further processing hot rolled steel through cold reduction at room temperature. This process significantly improves surface finish, thickness accuracy, and mechanical consistency. Compared with hot rolled steel, cold rolled grades offer smoother surfaces, better flatness, and enhanced formability, making them ideal for precision stamping, bending, and forming operations.
Types of carbon steel and their properties
Carbon steel can be classified into three categories according to its carbon content: low-carbon steel (or mild-carbon steel), medium-carbon steel and high-carbon steel . Their carbon content, microstructure and properties compare as follows:
| Carbon content (wt.%) | Microstructure | Properties | Examples |
| Low-carbon steel | < 0.25 | Ferrite, pearlite | Low hardness and cost. High ductility, toughness, machinability and weldability |
| Medium-carbon steel | 0.25 – 0.60 | Martensite | Low hardenability, medium strength, ductility and toughness |
| High-carbon steel | 0.60 – 1.25 | Pearlite | High hardness, strength, low ductility |
Carbon Steel Description
Grade:
1)GB: Q195, Q215, Q235A, Q235B, Q235C, Q235D, Q255A, 255B, Q275, Q295A, Q295B, Q345B, Q345C, Q345D, Q345E, Q390A, Q390B, Q390C,Q390D, Q390E, Q420, Q420B, Q420C, Q420D, Q420E, Q460D, Q460E, Q500D, Q500E, Q550D, Q550E, Q620D, Q620E, Q690D, Q690E
2)EN: S185,S235JR, S275JR, S355JR, S420NL, S460NL S500Q, S550Q, S620Q, S690Q
3)ASTM: Grade B, Grade C, Grade D, A36, Grade 36, Grade 40, Grade42, Grade 50, Grade 55, Grade 60, Grade 65, Grade 80
4)JIS: SS330, SPHC, SS400, SPFC, SPHD, SPHE
| Product Parameters | |
| Product Name | DC01/DC02/DC03/DC04 Cold Rolled Steel Plate |
| Production Process | Hot Rolling, Cold Rolling |
| Material Standards | AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc. |
| Width | 100mm-3000mm |
| Length | 1m-12m, or Customized Size |
| Thickness | 0.1mm-400mm |
| Delivery Conditions | Rolling, Annealing, Quenching, Tempered or Standard |
| Surface Process | Ordinary, Wire Drawing, Laminated Film |
| Chemical Composition |
| C: max. 0,08 % |
| Mn: max. 0,40 % |
| P: max. 0,03 % |
| S: max. 0,03 % |
| Mechanical Properties | ||||
| Steel Grade | Yield Strength (MPa) min | Tensile Strength (MPa) min | Elongation | Old Description |
| % min | ||||
| DC01 | ≤280 | 270-410 | 28 | St 12-03 |
| DC03 | ≤240 | 270-370 | 34 | St 13-03 |
| DC04 | ≤210 | 270-350 | 38 | St 14-03 |
| DC05 | ≤180 | 270-330 | 40 | St 15-03 |
| DC06 | ≤170 | 270-330 | 41 | - |
| DC07 | ≤150 | 250-310 | 44 | - |
| Scope of Application |
| DC01 can be used for simple forming work, for example Bending, embossing, beading and pulling. |
| DC03 is suitable for forming requirements like Deep drawing and difficult profiles suitable. |
| DC04 is suitable for high deformation requirements. |
| DC05 is a thermal forming grade, it is suitable for higher forming requirements. |
| DC06 is a grade for special deep drawing, suitable for the higher deformation requirements. |
| DC07, this superior deep drawing quality is suitable for highest deformation requirements. |
GNEE STEEL supplies a full range of DC01, DC03, DC04, DC05, DC06, and DC07 cold rolled steel plates, with stable quality control, flexible sizing options, and reliable export packaging. In addition to EN 10130 grades, GNEE STEEL also provides SPCC, SPCD, SPCE, and SAE 1006 cold rolled steel, enabling customers to source multiple specifications from one trusted supplier.
Send your inquiry today to receive professional grade recommendations and competitive pricing.

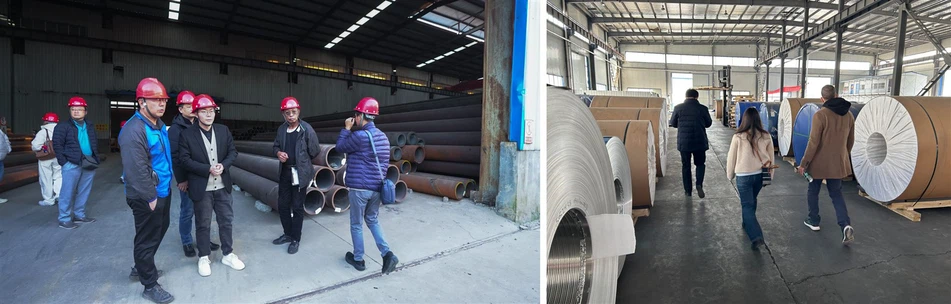

Actual factory photos
