Products Description
I. Key Points for Food Contact Material Certification
For use in food machinery, materials must comply with EC Regulation 1935/2004. Critical Control Points include:
1. Surface coatings must be certified according to FDA 21CFR175.300.
2. Welded areas must be passivated.
3. Contact surface roughness must be controlled to Ra ≤ 0.4μm.
4. Regular testing for heavy metal migration (lead < 0.01mg/kg).
II. Core Performance Parameters and Testing Standards
According to EN 10130, typical mechanical properties of this material include: yield strength of 140-280 MPa, tensile strength of 270-410 MPa, and elongation ≥ 28%. Rockwell hardness values range from 40-75 HRB, with excellent deep-drawability (r-value ≥ 1.8). Electrochemical testing shows that after passivation, its salt spray corrosion resistance can reach over 120 hours.
III. Material Composition and Production Process Characteristics
DC01 is a low-carbon cold-rolled steel sheet, primarily composed of an iron matrix with trace amounts of carbon and manganese. Produced using a continuous cold rolling mill, key processes include pickling and descaling the hot-rolled coil, multiple cold-rolling passes, protective atmosphere annealing, and leveling. This process combination ensures a product tolerance of 0.8-1.2mm and a surface roughness of Ra ≤ 0.8μm.
IV. Typical Application Scenarios
1. Automotive Industry: Door inner panels, fuel tank brackets, and other structural components.
2. Home Appliance Manufacturing: Washing machine drums, microwave oven chambers.
3. Food Equipment: Retort liner, conveyor belt support frames.
4. Architectural Decoration: Elevator car panels, metal ceilings.
By optimizing heat treatment parameters, DC01 steel plate can be further upgraded to ultra-deep-drawing grade DC04 to meet more complex forming requirements.
|
Thickness |
0.10~6mm |
|
Width |
Galvanized steel strip:24-600 mm; galvanized steel coil:600-1250mm |
|
Coil weight |
Usually is 3-4.5 tons,the max coil is 10 tons |
|
Zn coating |
0.1-0.8 mm is 30-150 g/m2; 0.8-1.5 mm is 30-180 g/m2;1.5-6.0 mm is 30-275 g/m2 |
|
Coil ID |
600-1500 mm,Normal width is 91 4/1000/1219/1250/1500 mm |
|

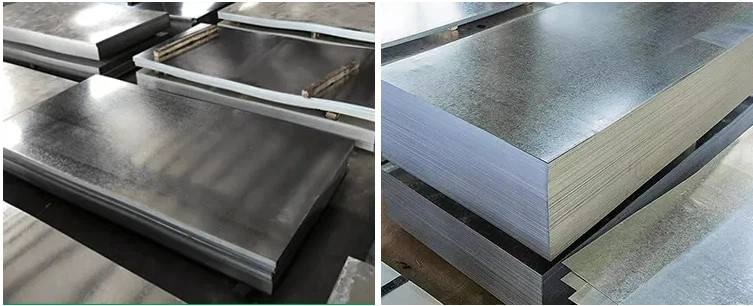

Steel grade |
DX51D,DX52D,DC01,DC02,SGHC |
|
Surface |
regular/mini/big/zero spangle,skin pass, chromated, unoiled, dry |
|
Packaging |
seaworthy export standard package, or according to the customers'requirement |
|
MOQ |
1 ton , We can accept sample order. |
|
Shipment Time |
Within 5-10 workdays after receiving deposit |
As an experienced steel exporter, GNEE STEEL not only provides high-quality cold-rolled galvanized steel products, but also creates higher value for customers through a comprehensive supply chain system and strict quality control. In addition to cold-rolled galvanized steel, our galvanized steel sheets, galvanized steel coils, cold-rolled steel coils, and cold-rolled steel sheets are also highly sought after by customers and widely used in industrial manufacturing and infrastructure construction.
