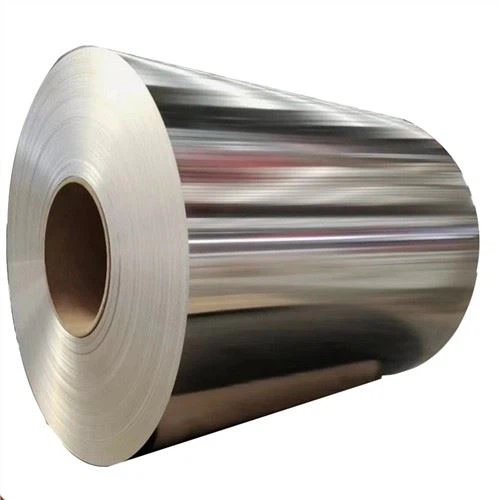

Galvalume Steel Coil
Galvanized zinc coil is based on cold-rolled steel plate, which is solidified by 55% aluminum, 43.4 zinc and 1.6 silicon at 600 ℃. It combines the physical protection and high durability of aluminum with the electrochemical protection of zinc. Also known as aluminized zinc steel coil.
|
Product Name |
Galvalume Steel Coil |
|
Thickness |
0.12mm-6.00mm |
|
Width |
600mm-1500mm |
|
Length |
1m-12m, Support Customization |
|
Standard |
AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc. |
|
Thickness of Aluminum Zinc Coating |
30-185g/m² |
|
Content of Al-Zn Coating |
Al: 55%, Zn: 43.5%, Si: 1.5% |
- Galvanized Surface Selection
|
Type of Coating |
Recommended Coating Weight |
|
Aluminum-zinc Alloy |
30/40/50/60/75/90/100/150 |
|
A: Coating quality50g/㎡,approximately equal to the coating thickness13.3pm |
|
|
Project |
Classification |
Symbol |
|
Type of Coating |
Aluminum-zinc Alloy |
AZ |
|
Surface Finish |
Conventional Sequins |
R |
|
Minimize Sequins |
M |
|
|
Skin Through |
S |
|
|
Surface Treatment |
Chromate Passivation |
c |
|
Non-chromate Passivation |
C5 |
|
|
Chromate Passivationoiling |
CO |
|
|
Chromium-free Passivationoiling |
CO5 |
|
|
Anti-fingerprint |
N |
|
|
Chromate-free/Anti-fingerprint |
N5 |
|
|
No chromate high weather resistance fingerprint |
NW |
|
|
Oil filling |
0 |
|
|
No treatment |
U |
- Material Comparison
|
Chinese Standard |
European Standards |
American Standard |
Japanese Standard |
|
DC51D+AZ |
DX51D+AZ |
CS Type B, Type C |
SGLCC |
|
DC52D+AZ |
DX52D+AZ |
DS |
SGLCD |
|
S250GD+AZ |
S250GD+AZ |
255 |
- |
|
S300GD+AZ |
- |
- |
- |
|
S350GD+AZ |
S350GD+AZ |
345 |
Class1 SGLC490 |
|
S550GD+AZ |
S550GD+AZ |
550 |
SGLC570 |
