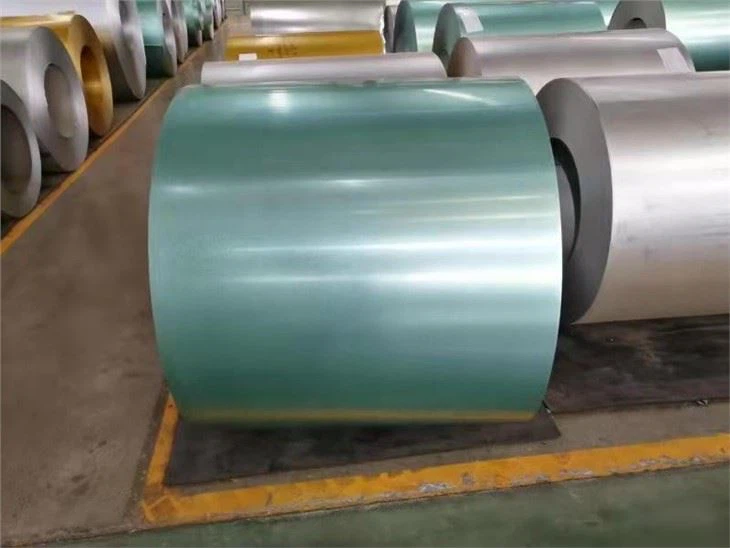

The prepainted steel sheet in coil is a product obtained by subjecting a hot-dipped galvanized steel sheet, an galvalume steel sheet, or an aluminum sheet to a surface chemical treatment (coating) , followed by baking and curing.

The total thickness of the pre-panted galvanized steel coil is composed of the base steel – coating -primer – top paint – protective layer thickness. The top paint thickness is 10-25μm, and the back paint thickness is 5-20μm. The thinner the base steel thickness, the higher the price of the ppgi steel coil, because the processing cost becomes higher.
Usually the paint coating material is polyester (PE) and the color of the back paint is white grey. The color can be customized according to the RAL color card or customer samples. Special patterns can be made, such as wood grain, flower print, camouflage, brick.

1) PPGI also known as prepainted galvanized steel coil and color coated steel coil, with a hot dip zinc coated steel sheet substrate.

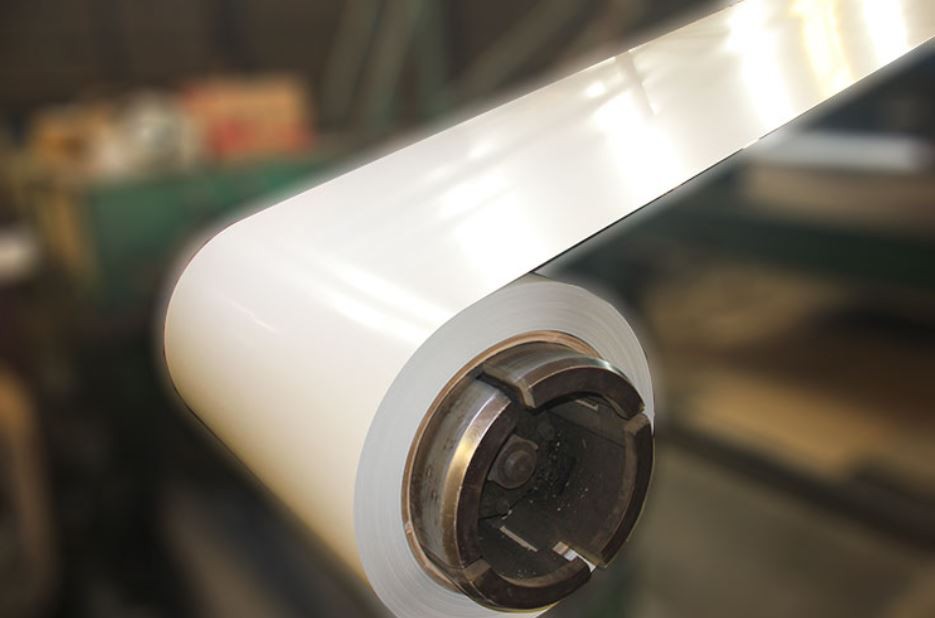

2) PPGL also known as prepainted galvalume steel coil, with a galvalume steel sheet as a substrate.

Product name	Galvanized Steel Coil
Grade	SGCC/DC51D/DX51D/DX52D/SGSS/SGCD1/SGCD2/SGCD3
Standard	JIS G3302 / ASTM A653M / EN10327 / DIN17162
Thickness	0.12-100mm
Width	600-2500mm(usual size:914mm,1000mm,1200mm,1219mm,1250mm,1220mm)
Spangle	Regular spangle,Minimum spangle, Zero spangle, Big spangle
Zinc Coating	30-600g/m²
Hardness	Soft hard(HRB60),medium hard(HRB60-85),full hard(HRB85-95)
Package	Standard seaworthy export packing
Delivery	Within 7-15 days
Regular Order	one container,for less quantity,to contact with us for details
Application	Gutters,Auto parts,Electrical Appliances,Purling,Vending Machine,Refrigerator
Coil Weight	3 tons to 5 tons
