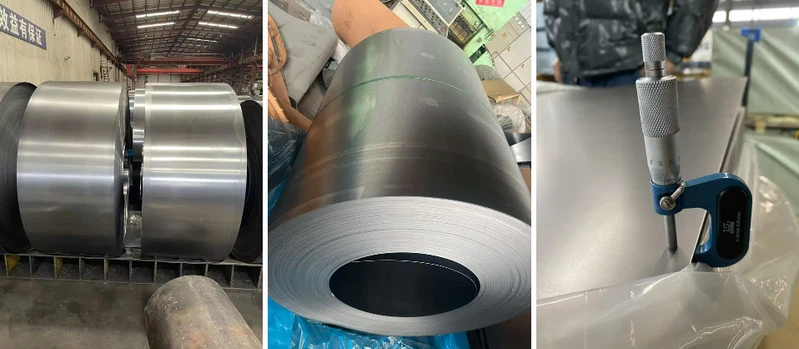

Cold Rolled Steel Coil
Cold-rolled steel refers to steel that is processed by rolling at a temperature below the steel's recrystallization temperature. It is typically produced from hot-rolled steel coils as raw material, processed at room temperature through multiple rolling passes, annealing, and leveling processes.
Cold rolled steel is a widely utilized material known for its superior mechanical properties and aesthetic finish. Within this category, the DC06 Supreme Extra Deep Drawn SEDDQ (Super-Electric Deep Drawn Quality) has garnered attention for its exceptional performance in demanding applications. This product is engineered for superior formability, making it indispensable in industries requiring high-quality deep-drawn components.
Specifications Table of Cold Rolled Steel：
| Quality | Material-No. | Standard | Surface refinement | Classification according to EN10020 |
|---|---|---|---|---|
| DC01 | 1.0330 | DIN EN 10130 | +ZE according to DIN EN 10152 | Unalloyed quality steel |
| DC03 | 1.0347 | DIN EN 10130 | +ZE according to DIN EN 10152 | Unalloyed quality steel |
| DC04 | 1.0338 | DIN EN 10130 | +ZE according to DIN EN 10152 | Unalloyed quality steel |
| DC05 | 1.0312 | DIN EN 10130 | +ZE according to DIN EN 10152 | Unalloyed quality steel |
| DC06 | 1.0873 | DIN EN 10130 | +ZE according to DIN EN 10152 | Alloyed quality steel |
| DC07 | 1.0989 | DIN EN 10130 | +ZE according to DIN EN 10152 | Alloyed quality steel |
Application Scenarios:
DC01 – Designed for basic forming processes such as bending, embossing, beading and standard drawing operations.
DC03 – Intended for more demanding forming applications, including deep drawing and more complex profiling.
DC04 – Suitable for applications requiring high levels of formability.
DC05 – A deep-drawing grade developed to meet very high forming requirements.
DC06 – A special deep-drawing grade engineered for the highest demands in cold forming.
DC07 – An ultra deep-drawing grade tailored for extreme and highly challenging forming operations.
Key Features & Specifications
Grade Classification:
This steel encompasses multiple designations - including DC06, SEDDQ, DC07, SPCEN, ST16, and ST17 - each representing specific mechanical and chemical characteristics tailored to different application requirements.
DC06: Offers exceptionally high ductility and low yield strength, making it ideal for deep-drawing applications.
DDQ (Deep Drawing Quality): Provides an extra-smooth surface finish, improving both the aesthetic appearance and functional performance of end products.
Thickness Range:
The cold-rolled steel sheet is available in thicknesses from 0.20 mm to 3.0 mm, ensuring adaptability to a wide range of manufacturing processes and design specifications.
Surface Finish:
The cold-rolling process delivers a highly refined surface with minimized imperfections, ensuring excellent paintability and coating adhesion for downstream finishing.
Mechanical Properties:
Yield Strength: Engineered for outstanding formability, allowing tight-radius bending and complex shaping without the risk of cracking.
Tensile Strength: Ensures high durability and structural stability, contributing to prolonged service life and reliable performance in end-use applications.
GNEE STEEL also offers the following brands:DC01 DC03 DC04 DC05 DC06 DC07
SPCC SPCD SPCE SPCF ST12 ST13 ST14 ST15;or as Customer's Requirement
