DX52D+ZM

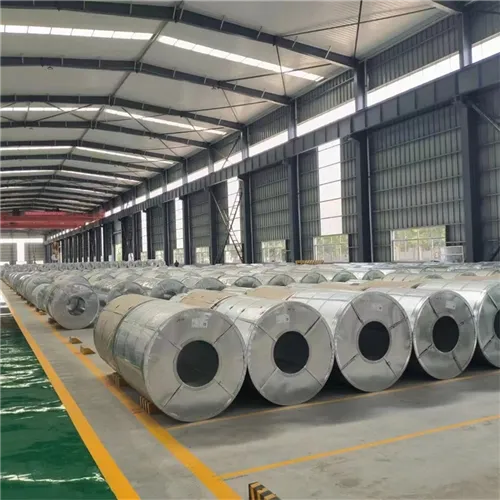

DX52D+ZM steel coil is a zinc-aluminum-magnesium coated steel product manufactured according to EN 10346 standards. It combines a highly formable DX52D cold-forming steel substrate with an advanced ZM (Zinc-Magnesium-Aluminum) coating, offering excellent corrosion resistance and processing performance.
Aluminum-Magnesium-Zinc coated steel is a new type of highly corrosion-resistant coated steel sheet with a coating composition consisting of zinc as the main substrate in combination with aluminum (about 11%), magnesium (about 3%) and a trace amount of silicon.Adding Al, Mg, and Si to it, the composite effect of these added elements improves corrosion resistance.Compared with hot-dip galvanized steel sheet and hot-dip galvanized-5% aluminium alloy steel sheet, it has less adhesion but equal corrosion resistance. In addition, it can be used instead of stainless steel or aluminium sheet because of its excellent red rust resistance.
Grade: DX52D+ZM
DX52D+ZM steel quality: Drawing quality
DX52D+ZM steel coating finish:
N (Normal spangle), M (Minimized spangle), R (Regular Zinc-magnesium alloy coating)
DX52D+ZM steel Coil/strip/sheet surface quality:
A (As coated surface), B (Improved surface),C (Best quality surface)
Surface treatment
DX52D+ZM steel Coil/strip/sheet surface treatment:
C (Chemical passivation),O (oiling), CO(Chemical passivation and oiling), S ( Seales), P(Phosphated), U(Untreated)
DX52D+ZM steel Coil/strip/sheet coating mass: ZM060, ZM070, ZM080, ZM090, ZM100, ZM120, ZM130, ZM140, ZM150, (ZM160), (ZM175), (ZM200), (ZM250), (ZM300), (ZM310), (ZM350), (ZM430),
DX52D+ZM steel Coil/strip/sheet coating: Zinc-magnesium alloy (ZM) : application of a zinc-magnesium coating by immersing the prepared strip in a molten bath of zinc-aluminium-magnesium.
EN10346 DX52D+ZM steel suitable size: Thickness 0.3mm-3.0mm

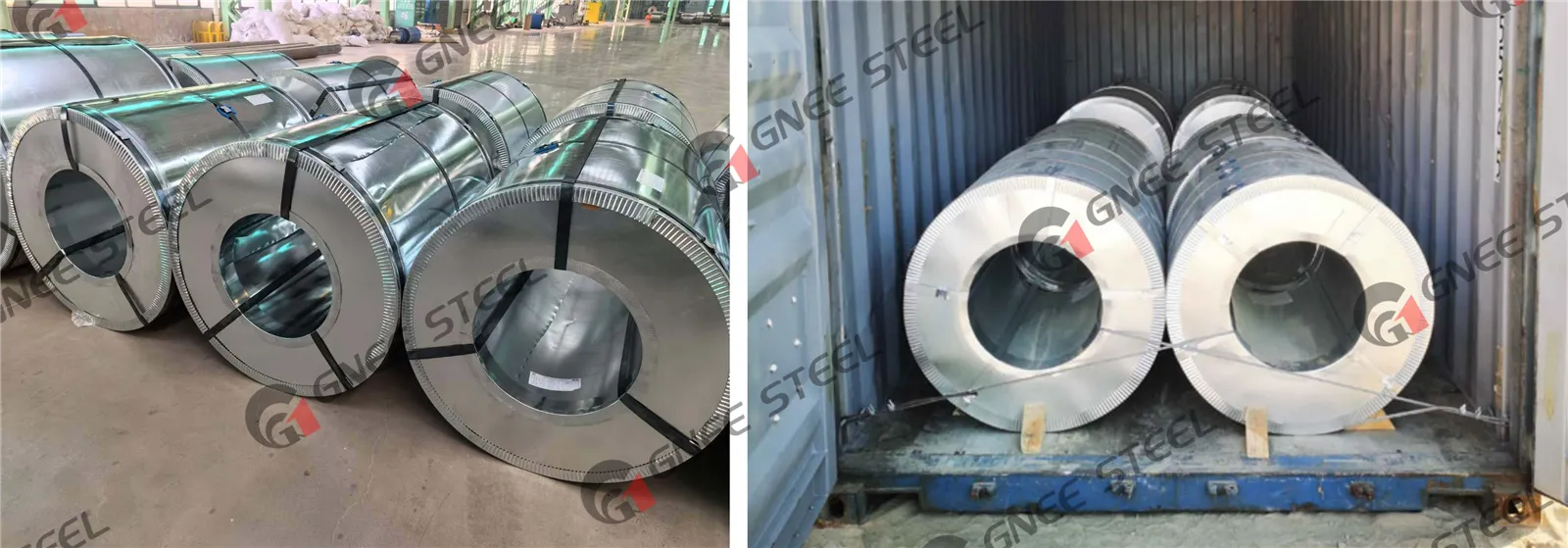

Packaging and Shipping
DX52D+ZM steel chemical composition % by mass max
Grade | Material No. | C | Si | Mn | P | S | Ti |
| DX52D+ZM | 1.0350+ZM | 0.12 | 0.50 | 0.60 | 0.10 | 0.045 | 0.30 |
DX52D+ZM steel Mechanical properties
Grade | Material No. | R90 min | N90 min | Yield Strength MPa | Tensile strength MPa | Elongation A80 min |
| DX52D+ZM | 1.0350+ZM | - | - | 140-300 | 270-420 | 26 |
DX52D+ZM vs. DX51D+Z
| Property | DX52D+ZM | DX51D+Z (Galvanized Steel) |
| Coating Type | Zinc-Aluminum-Magnesium | Zinc |
| Corrosion Resistance | Excellent | Standard |
| Cut-Edge Protection | Self-healing effect | Limited |
| Service Life | Longer | Shorter |
| Outdoor Performance | Superior | Moderate |
| Initial Cost | Slightly Higher | Lower |
Product Classification
| Type | Aluminum Content | Main Characteristics |
| Low-Al Zn-Al-Mg | 1%-3.5% | Upgraded corrosion resistance from hot-dip galvanizing |
| Medium-Al Zn-Al-Mg | 5%-11% | Balanced corrosion resistance and workability, e.g., Zn-11%Al-3%Mg |
| High-Al Zn-Al-Mg | ~55% | Upgraded corrosion resistance from hot-dip galvalume |
Common Grades and Standards
| Common Grades and Standards | ||
| Grade | Standard | Characteristics & Applications |
| DX51D+ZM | EN 10346 | Commercial grade, general forming, for construction and general use |
| DX52D+ZM | EN 10346 | Drawing grade, for medium forming requirements |
| DX53D+ZM | EN 10346 | Deep drawing grade, for complex forming |
| DX54D+ZM | EN 10346 | Extra deep drawing grade |
| S250GD+ZM | EN 10346 | Structural grade, 250MPa yield strength |
| S350GD+ZM | EN 10346 | Structural grade, 350MPa yield strength |
| S550GD+ZM | EN 10346 | High-strength structural grade, 550MPa yield strength |
| DC51D+ZM | Low carbon steel, for appliances and general fabrication | |
Obtain Zn-Al-Mg Coated Steel Specification Sheet
Coating Specifications
| Coating Specifications | ||
| Coating Designation | (g/m²) Coating Weight (Both Sides) | Typical Applications |
| ZM60 | 60 | General indoor use |
| ZM90 | 90 | Light industry, appliances |
| ZM120 | 120 | Construction, general use |
| ZM150 | 150 | Construction, outdoor structures |
| ZM180 | 180 | Highly corrosive environments |
| ZM200 | 200 | Harsh environments, coastal/industrial areas |
| ZM275 | 275 | Heavy corrosion environments |
| ZM350 | 350 | Special heavy corrosion requirements |

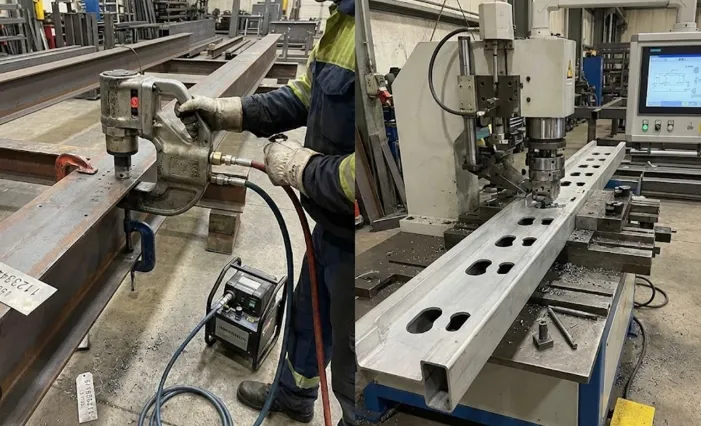

Our Processing Capabilities
At GNEE STEEL, we supply not only DX52D+ZM steel coils but also provide value-added fabrication services for solar mounting applications.
With extensive experience in processing zinc-aluminum-magnesium coated steel, we can manufacture customized solar mounting components according to customer drawings and project requirements.
- Slitting
- Cut-to-length
- Punching
- Roll forming
- Bending
- Stamping
- Welding assembly
- Surface treatment and packaging
These services help customers reduce procurement complexity and shorten production lead times.
Why Choose ZM-Coated Steel for Solar Mounting Systems?
1. Longer Service Life
The zinc-aluminum-magnesium coating provides outstanding protection against corrosion, making it suitable for harsh outdoor environments and coastal areas.
2. Lower Maintenance Costs
The self-healing effect at cut edges helps reduce rust formation and minimizes maintenance requirements throughout the project lifecycle.
3. Cost-Effective Solution
Compared with traditional hot-dip galvanized structures, ZM-coated solar mounting systems can achieve similar or even better corrosion performance while reducing overall manufacturing and installation costs.
5. Faster Project Delivery
By sourcing both raw materials and finished mounting components from a single supplier, customers can simplify their supply chain and accelerate project execution.

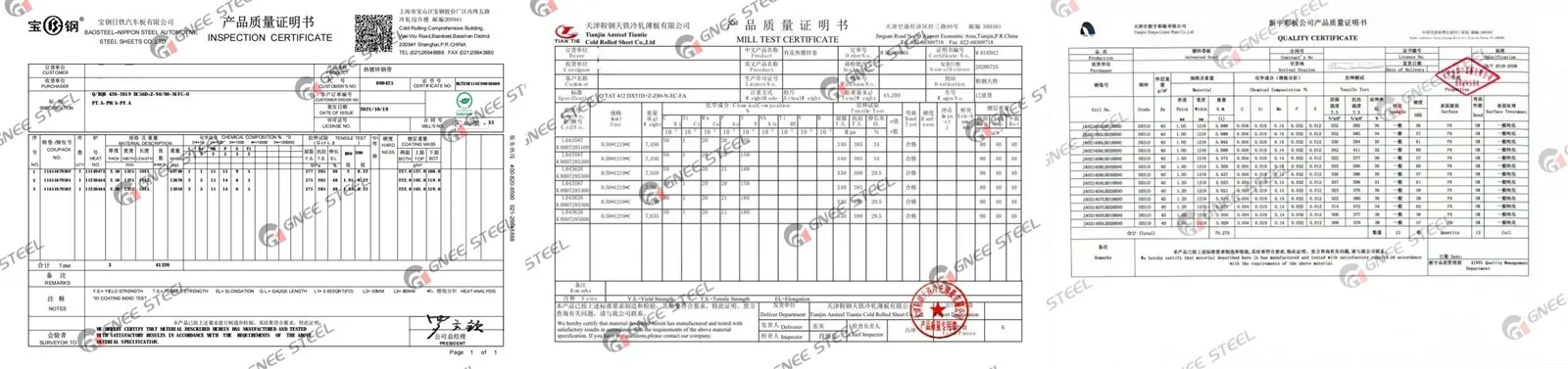

Our Qualifications
Our Clients
FAQ
1. What does DX52D+ZM mean?
DX52D refers to the cold-forming steel grade, while ZM indicates a zinc-aluminum-magnesium metallic coating applied to the steel surface.
2. Is DX52D+ZM better than galvanized steel?
In most outdoor applications, DX52D+ZM offers significantly better corrosion resistance and cut-edge protection than conventional galvanized steel.
3. Can DX52D+ZM be used for solar mounting structures?
Yes. DX52D+ZM is widely used in solar mounting systems because of its excellent durability and long service life in outdoor environments.
4. What coating weights are available for DX52D+ZM?
Common coating weights include ZM90, ZM120, ZM150, ZM200, ZM250, and ZM310.
5. Does DX52D+ZM have self-healing properties?
Yes. The magnesium-containing coating forms a protective layer at cut edges and scratches, helping to reduce corrosion development.
