What Is Zinc-aluminum-magnesium Coated Steel Coil?

Zinc-aluminum-magnesium coated steel coil-often referred to as ZAM steel coil-is rapidly becoming one of the most important materials in modern construction, energy, automotive, and industrial manufacturing.

Zinc-aluminum-magnesium coated steel coil-often referred to as ZAM steel coil-is rapidly becoming one of the most important materials in modern construction, energy, automotive, and industrial manufacturing. As industries demand longer service life, better corrosion resistance, and lower lifecycle costs, traditional galvanized steel is no longer always sufficient.

ZAM coated steel represents the next generation of corrosion-resistant steel. It combines the protective benefits of zinc, aluminum, and magnesium into a single advanced alloy coating applied through a hot-dip process. The result is a material that offers superior durability, excellent processing performance, and significant cost advantages over time.

This article provides a comprehensive and practical guide to zinc-aluminum-magnesium coated steel coil. It explains what the material is, how it is manufactured, its key properties, applications, advantages over traditional materials, and most importantly, how to source and purchase it effectively for your business.

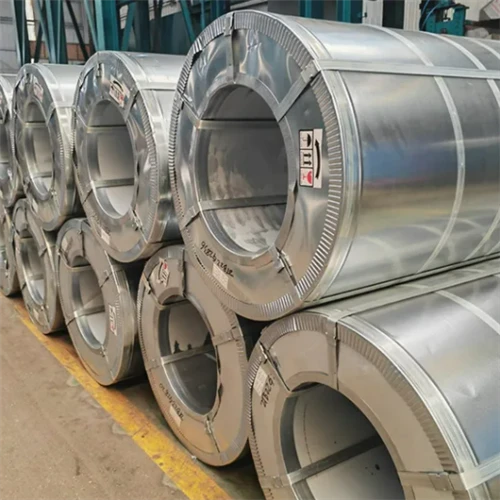

Zinc-aluminum-magnesium coated steel coil is a type of alloy-coated steel produced by applying a protective layer composed primarily of zinc (Zn), aluminum (Al), and magnesium (Mg) onto a steel substrate using a hot-dip coating process.

This coating is engineered to significantly improve corrosion resistance compared to traditional galvanized steel. The most common composition includes:

• Zinc: approximately 85–94%
• Aluminum: approximately 4–11%
• Magnesium: approximately 0.2–3%
• Trace silicon for stability

The combination of these elements creates a multi-functional protective layer:

• Zinc provides sacrificial corrosion protection
• Aluminum forms a dense oxide barrier
• Magnesium enhances self-healing and corrosion resistance

Unlike conventional galvanized steel (which uses only zinc), ZAM steel leverages the synergy of multiple metals to achieve higher performance and longer service life.

1.Steel Substrate Preparation
Cold-rolled or hot-rolled steel coils are cleaned to remove oil, rust, and impurities.

2.Annealing Process
The steel strip is heated to improve mechanical properties and prepare it for coating.

3.Hot-Dip Coating
The steel passes through a molten bath containing zinc, aluminum, and magnesium alloy.

4.Coating Thickness Control
Gas wiping technology ensures uniform coating weight across the surface.

5.Cooling and Solidification
The coated steel is cooled to form a stable alloy layer.

6.Surface Treatment
Optional treatments include passivation, anti-fingerprint coating, or oiling.

The final product is delivered in coil form, ready for further processing such as cutting, stamping, bending, or roll forming.

Zinc-aluminum-magnesium coated steel is known for its superior performance in harsh environments. Its unique coating structure provides several critical advantages.

1. Exceptional Corrosion Resistance

ZAM steel offers significantly better corrosion resistance than traditional galvanized steel.

Up to 4 times better corrosion resistance in outdoor environments

Up to 10–20 times better performance in accelerated tests

This makes it ideal for coastal, industrial, and high-humidity environments.

2. Self-Healing Capability

One of the most important features is its self-healing property.

When the coating is scratched or cut, magnesium and zinc form a protective film over exposed areas. This prevents rust from spreading along edges or damaged zones.

3. Excellent Cut-Edge Protection

Unlike galvanized steel, which rusts at cut edges, ZAM steel maintains protection even after processing operations such as punching or trimming.

4. High Formability

ZAM steel can be easily processed using:

Bending

Stamping

Roll forming

Welding

It maintains coating integrity without cracking during forming operations.

5. Strong Mechanical Properties

Typical mechanical properties include:

Tensile strength: 270–550 MPa

Yield strength: 140–350 MPa

Elongation: 20–40%

This makes it suitable for structural and load-bearing applications.

6. Environmental Performance

ZAM steel is environmentally friendly:

Chrome-free passivation options available

High recyclability (>95%)

Reduced zinc consumption compared to galvanized steel

Understanding how ZAM compares with other coated steels is essential for procurement decisions.

• Compared to Galvanized Steel (GI)

Much higher corrosion resistance

Better cut-edge protection

Longer service life

Reduced maintenance costs

• Compared to Galvalume (Al-Zn)

Better edge corrosion resistance

Improved self-healing performance

Higher durability in harsh environments

ZAM is widely considered an upgraded version of both GI and Galvalume steel.

Ask for Sample & Quote

Zinc-aluminum-magnesium coated steel is used across a wide range of industries.

1. Construction and Architecture

Roofing panels

Wall cladding

Steel structures

Window and door frames

ZAM steel's corrosion resistance makes it ideal for long-term outdoor use.

2. Solar Energy Systems

Photovoltaic mounting structures

Solar panel frames

Its durability ensures long service life in outdoor environments.

3. Automotive Industry

Chassis components

Underbody parts

Structural reinforcements

ZAM steel protects against road salt and moisture corrosion.

4. Agriculture

Greenhouse structures

Livestock housing

Irrigation systems

It performs well in high humidity and chemically aggressive environments.

5. Infrastructure

Highway guardrails

Bridges

Cable trays

Communication towers

6. Appliances and Equipment

Air conditioners

Refrigerators

Industrial enclosures

1. How does its corrosion resistance compare to standard Galvanized (GI) steel?

Under the same coating weight, Zn-Al-Mg coated steel typically offers 3 to 10 times the corrosion resistance of standard galvanized steel, depending on the severity of the environment.

2. How does Zn-Al-Mg steel perform in salt spray tests (SST)?

In accelerated aging tests, Zn-Al-Mg coatings often withstand over 2,500 hours of salt spray without showing red rust, whereas traditional galvanized coatings of similar thickness may show signs of failure after 500 hours.

3. Is this material suitable for high-ammonia environments?

Yes. The chemical stability of the magnesium-based protective layer makes it exceptionally resistant to alkaline and ammonia-rich environments, such as those found in livestock facilities.

4. What are common coating weight designations?

Coating weights are usually designated by the total mass on both sides, ranging from ZM60 to ZM450. Higher numbers indicate a thicker coating for more extreme environments.

5. Can Zn-Al-Mg coated steel be welded?

Yes. It is compatible with standard welding methods including MIG, TIG, and resistance welding. Because the coating is thinner than heavy-duty batch galvanizing, it often produces less weld splatter and fumes.
